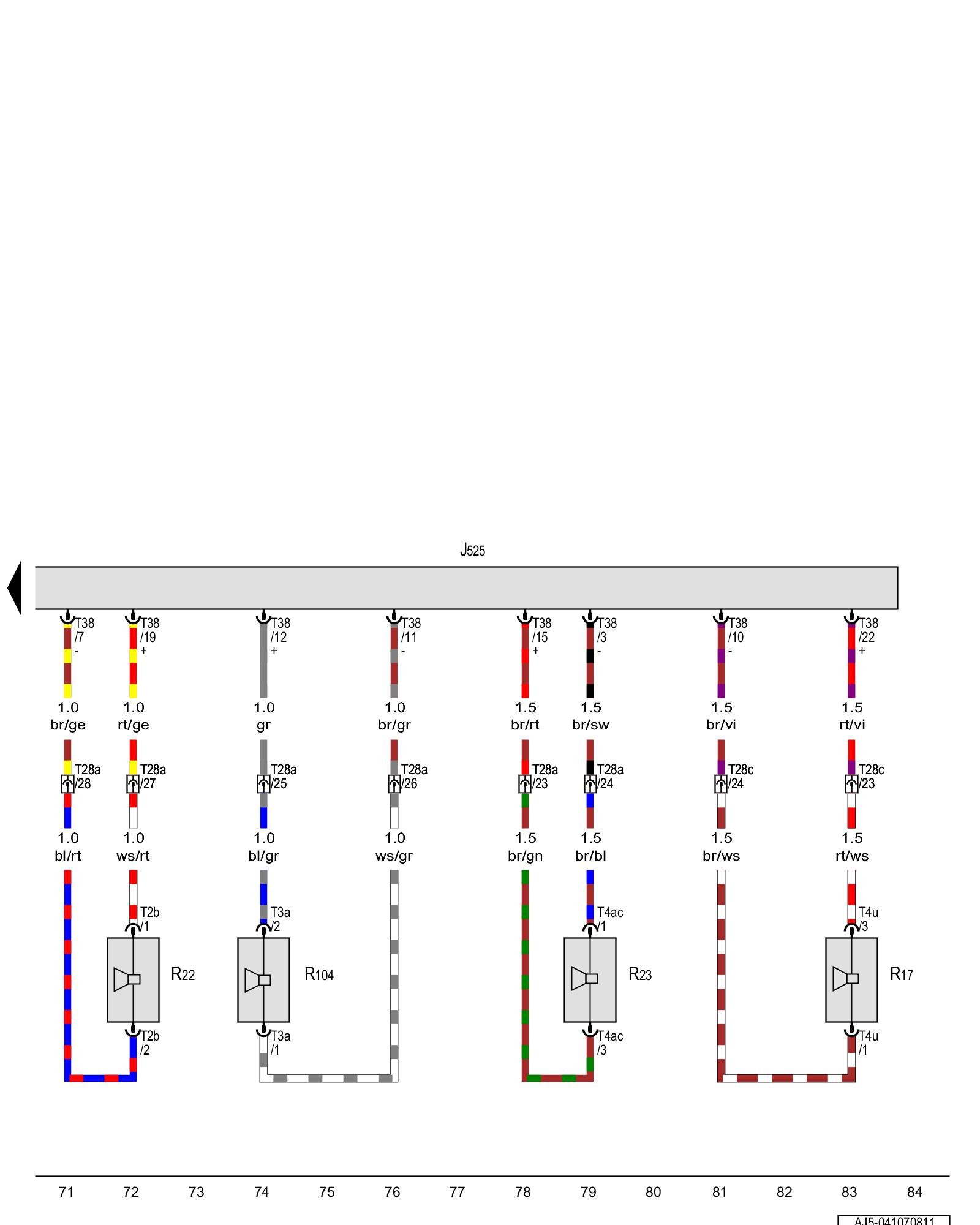

Diagram 41/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Digital sound system control module, Right rear bass speaker, Right front treble speaker, Right front bass speaker, Right front midrange speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital sound system control module

R17 - Right rear bass speaker

R22 - Right front treble speaker

R23 - Right front bass speaker

R104 - Right front midrange speaker

T2b - Double connector

T3a - 3-pin connector

T4ac - 4-pin connector

T4u - 4-pin connector

T28a - 28-pin connector

T28c - 28-pin connector

T38 - 38-pin connector
