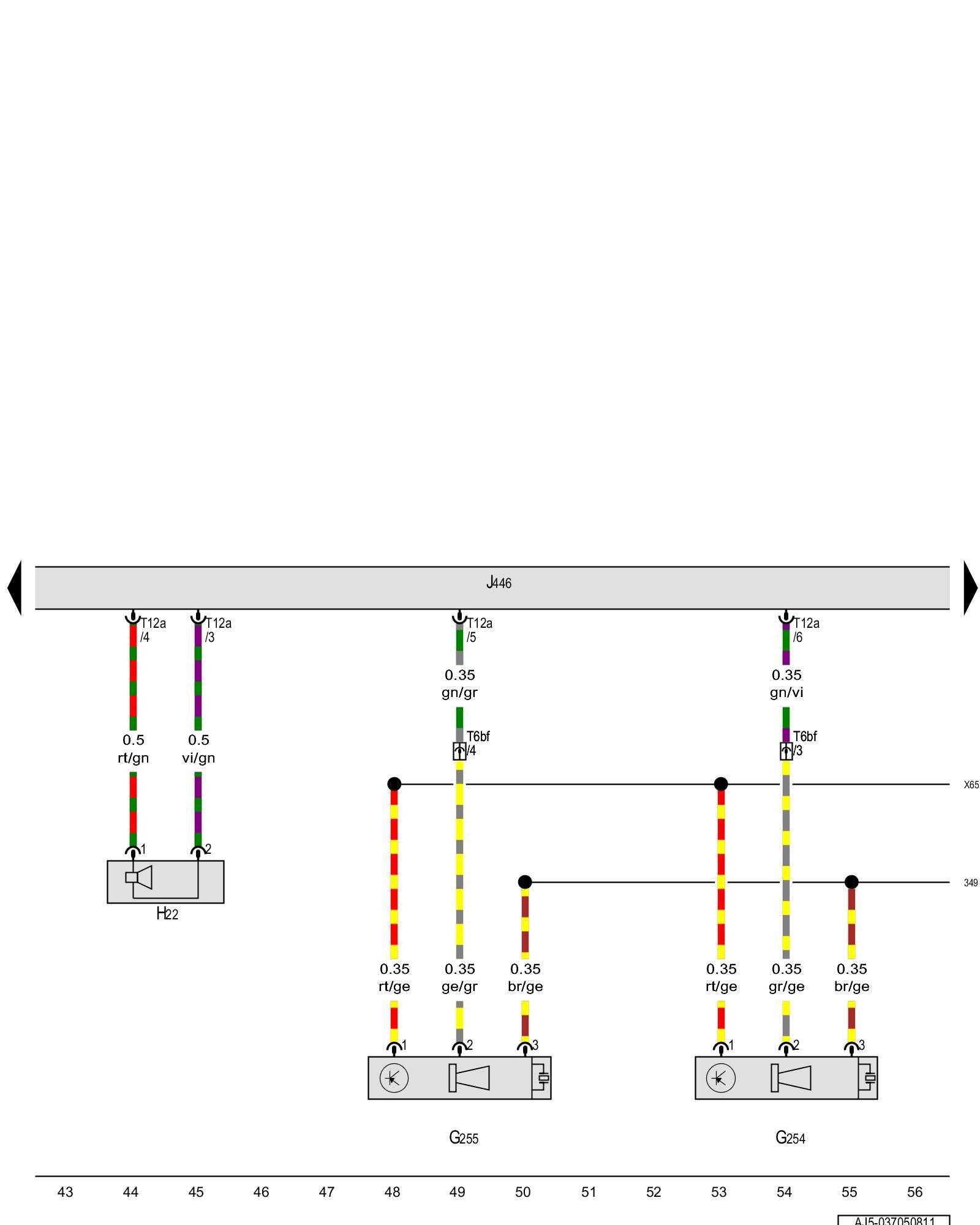

Diagram 37/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Left front center parking aid sensor, Left front parking aid sensor, Front parking aid warning buzzer, Parking aid control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G254 - Left front center parking aid sensor Parking Aid System Overview Parking Sensors : Front (G252, G253, G254, G255, G568, G569)

G255 - Left front parking aid sensor Parking Aid System Overview Parking Sensors : Front (G252, G253, G254, G255, G568, G569)

H22 - Front parking aid warning buzzer Parking Aid System Overview Front Parking Aid Warning Buzzer -H22-

J446 - Parking aid control module Parking Aid System Overview Parking Aid Control Module -J446-

T6bf - 6-pin connector

T12a - 12-pin connector

(349) - Horn ground connection (in front bumper wiring harness)

(X65) - Parking aid connection (in front bumper wiring harness)
