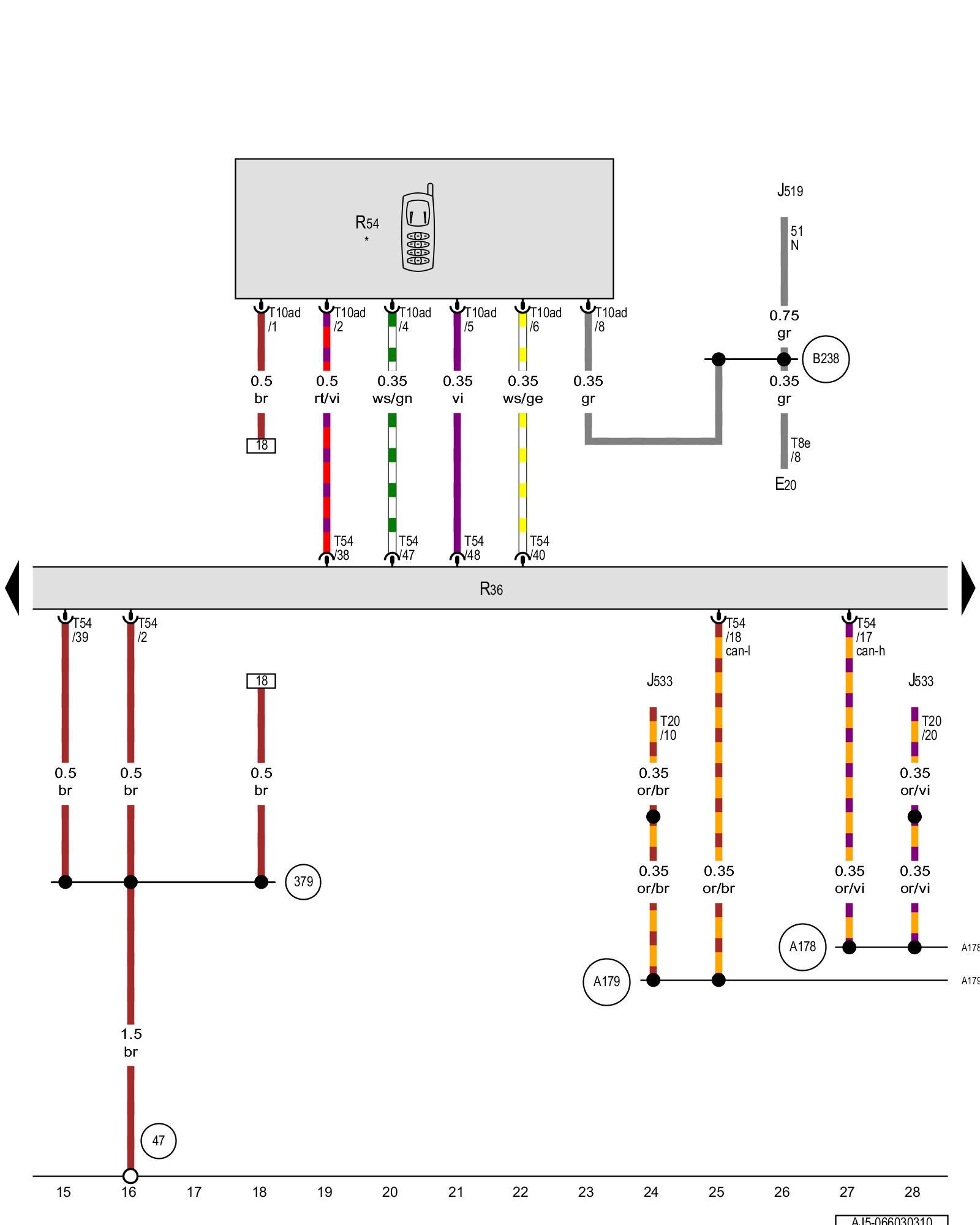

Diagram 66/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Telephone transceiver, Cellular telephone





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E20 - Instrument panel and switch illumination dimmer switch

J519 - Vehicle electrical system control module Locations

J533 - Data bus on board diagnostic interface Locations

R36 - Telephone transceiver Telematics System Overview

R54 - Cellular telephone Phone System Overview

T8e - 8-pin connector

T10ad - 10-pin connector

T20 - 20-pin connector

T54 - 54-pin connector

(47) - Ground connection in right front footwell

(379) - Ground connection 14 (in main wiring harness)

(A178) - Infotainment CAN bus high connection (in instrument panel wiring harness)

(A179) - Infotainment CAN bus low connection (in instrument panel wiring harness)

(B238) - Positive connection 2 (58b) (in interior wiring harness)

* - Component not contained in cell phone prep

Previous Diagram 66/2 (Tracks 1-14)

Next Diagram 66/4 (Tracks 29-42)
