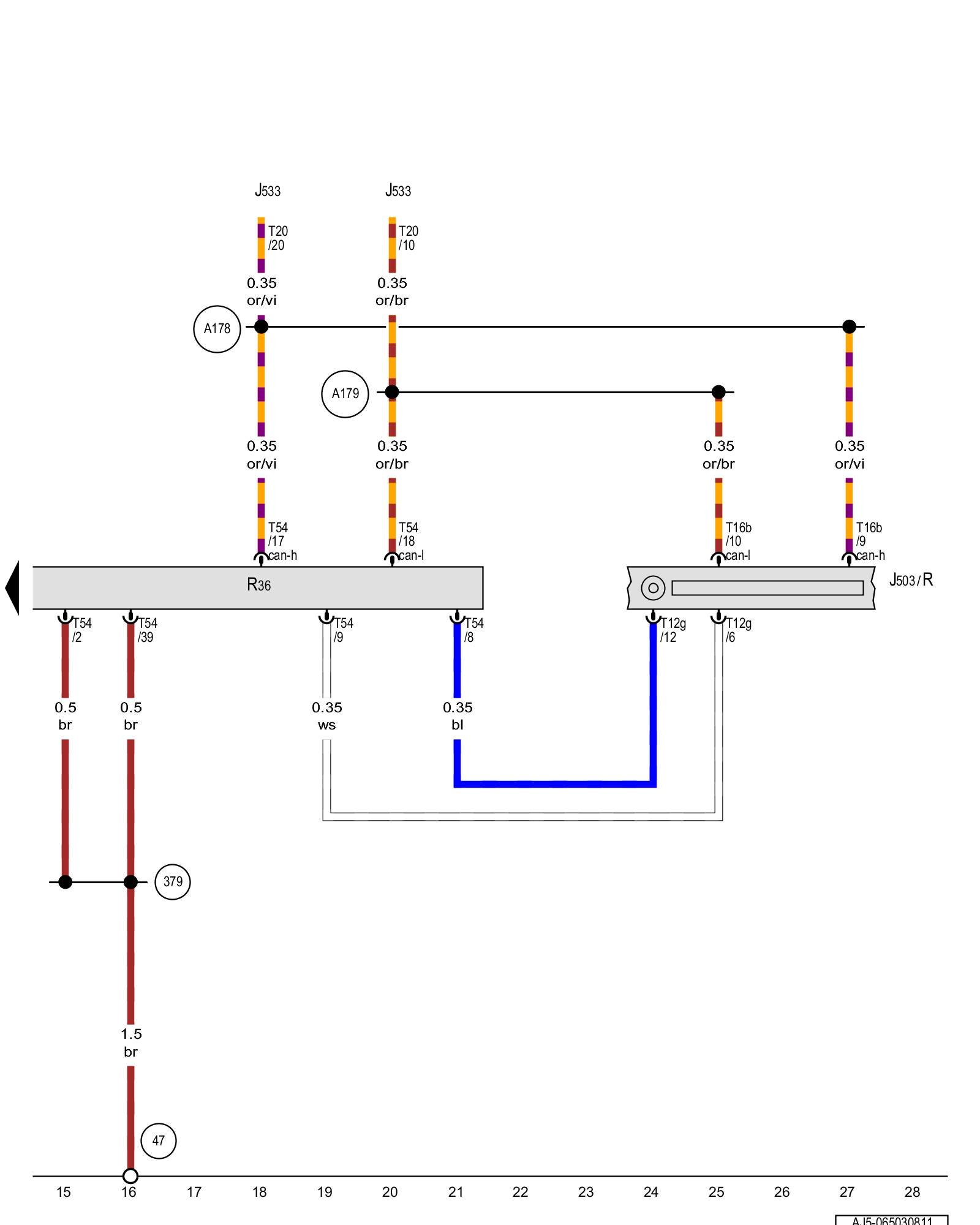

Diagram 65/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/navigation display unit control module, Radio, Telephone transceiver





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/navigation display unit control module RNS 510 Radio Nav System Overview

J533 - Data bus on board diagnostic interface Locations

R - Radio

R36 - Telephone transceiver Telematics System Overview

T12g - 12-pin connector

T16b - 16-pin connector

T20 - 20-pin connector

T54 - 54-pin connector

(47) - Ground connection in right front footwell

(379) - Ground connection 14 (in main wiring harness)

(A178) - Infotainment CAN bus high connection (in instrument panel wiring harness)

(A179) - Infotainment CAN bus low connection (in instrument panel wiring harness)

Previous Diagram 65/2 (Tracks 1-14)
