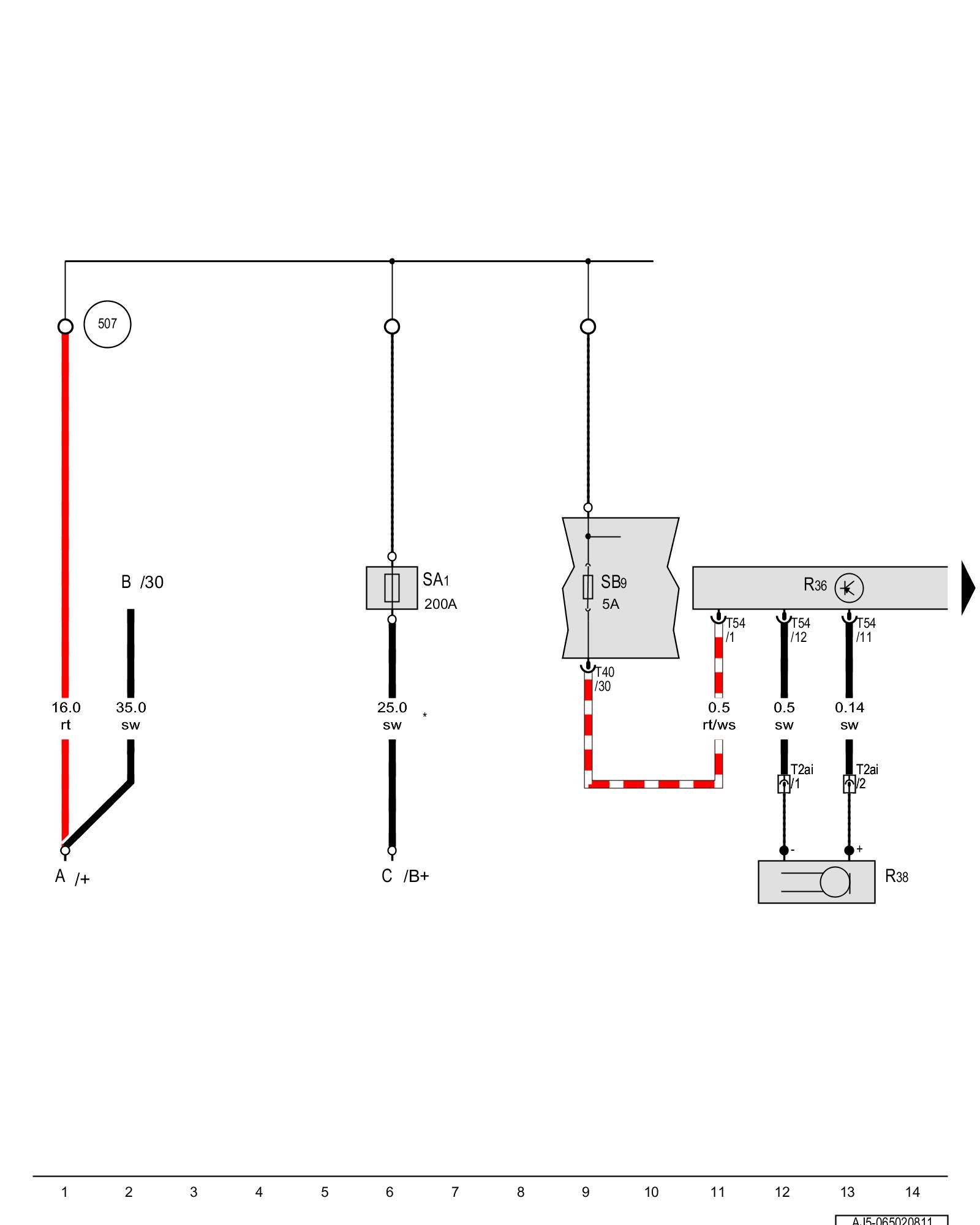

Diagram 65/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Telephone transceiver, Telephone microphone, Fuse 1 (on fuse panel A), Fuse 9 (on fuse panel B)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

C - Generator

R36 - Telephone transceiver Telematics System Overview

R38 - Telephone microphone Telematics System Overview

SA1 - Fuse 1 (on fuse panel A) Locations

SB9 - Fuse 9 (on fuse panel B) Locations

T2ai - Double connector

T40 - 40-pin connector

T54 - 54-pin connector

(507) - Terminal 30 threaded connection (on battery fuse holder)

* - 16,0 diameter possible
