Differential: Tools and Equipment

Special Tools

Special tools, testers and auxiliary items required

• Thrust Piece (T10148)

• Spindle from Seal Installer-Rear Differential (3066)

• Slide Hammer-Complete Set (VW 771)

• Additional Part for VW 771 (VW 771/37)

• Punch (VW 408 A)

• Thrust Piece (VW 473)

• Press Support-R&I Wheel Brg's (3144)

• Thrust Pad (2007)

• Torque Wrench (40-200 Nm) (V.A.G 1332)

• Drip Tray (V.A.G 1306)

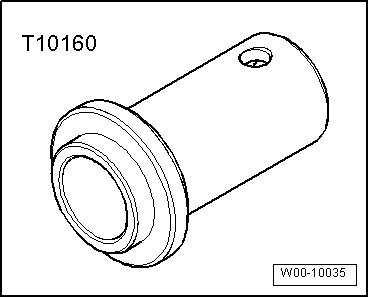

• Thrust Piece (T10160)

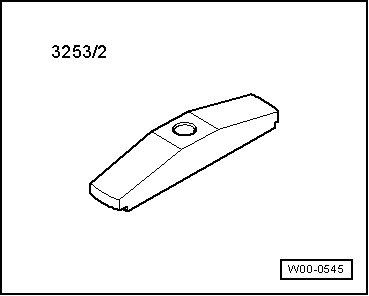

• Subframe Support Assembling Device (3253/2)











Special tools, testers and auxiliary items required

• Dial Gauge Holder (VW 387)

• Magnetic Plate 50 mm Dia. (VW 385/17)

• Punch (VW 407)

• Thrust Pad (30 - 205)

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• - 1 - Kukko Extractor 46-58 mm (21/7)

• - 4 - Kukko Support (22/2)






Special tools, testers and auxiliary items required

• Tapered Roller Bearing Puller (V.A.G 1582)

• Attachment to VAG 1582 (V.A.G 1582/3)

• Thrust Disc (VW 412)

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)













Edition 01.24.2012 FB
