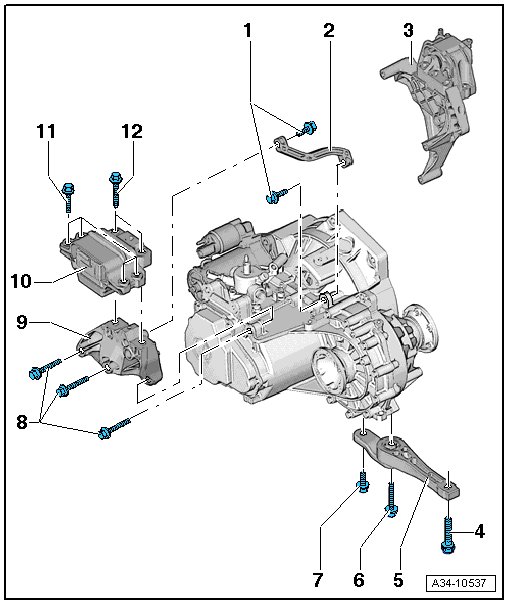

Engine and Transmission Mount and Bracket Overview

Engine and Transmission Mount and Bracket Overview






1 Bolt

• 20 Nm + 90° (1/4) additional turn.

• Always replace

• Tightening sequence, refer to => [ Transmission Support to Transmission Mount Bracket and Transmission ].

• Transmission support to the transmission mount bracket and the transmission.

2 Transmission Support

• Transmission mount bracket and the transmission.

3 Engine Mount with Engine Mount Bracket

4 Bolt

• Pendulum support to subframe.

5 Pendulum Support

6 Bolt

• Pendulum support to transmission.

7 Bolt

• Pendulum support to transmission.

8 Bolt

• 40 Nm + 90° (1/4) additional turn.

• Always replace.

• Transmission mount bracket to transmission.

9 Transmission Mount Bracket

10 Transmission Mount

11 Bolt

• Transmission mount to chassis.

12 Bolt

• 60 Nm + 90° (1/4) additional turn.

• Always replace.

• Transmission mount to transmission mount bracket.

Transmission Mount to Transmission Mount Bracket





- Install new bolts - arrows -.

- Tighten the bolts hand tight.

- Tighten the bolts to specification.

Transmission Support to Transmission Mount Bracket and Transmission





- Install new bolts - arrows -.

- Tighten the bolts hand tight.

- Tighten the bolts to specification.
