Transmission Control Module -J217-
Transmission Control Module -J217-

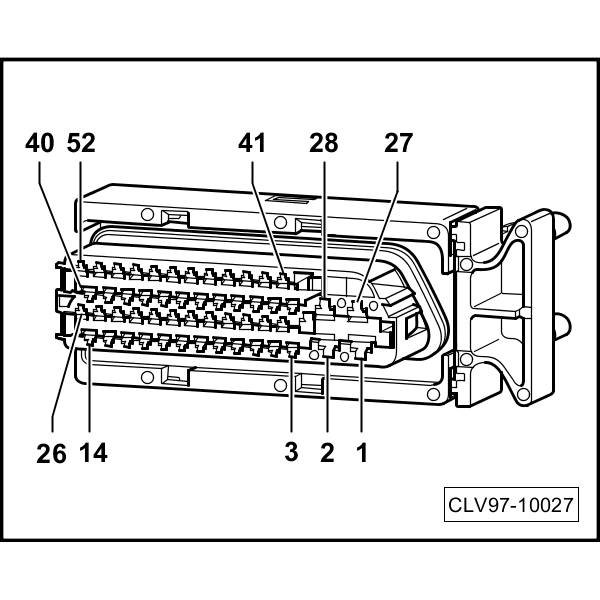

Transmission Systems Connector Views

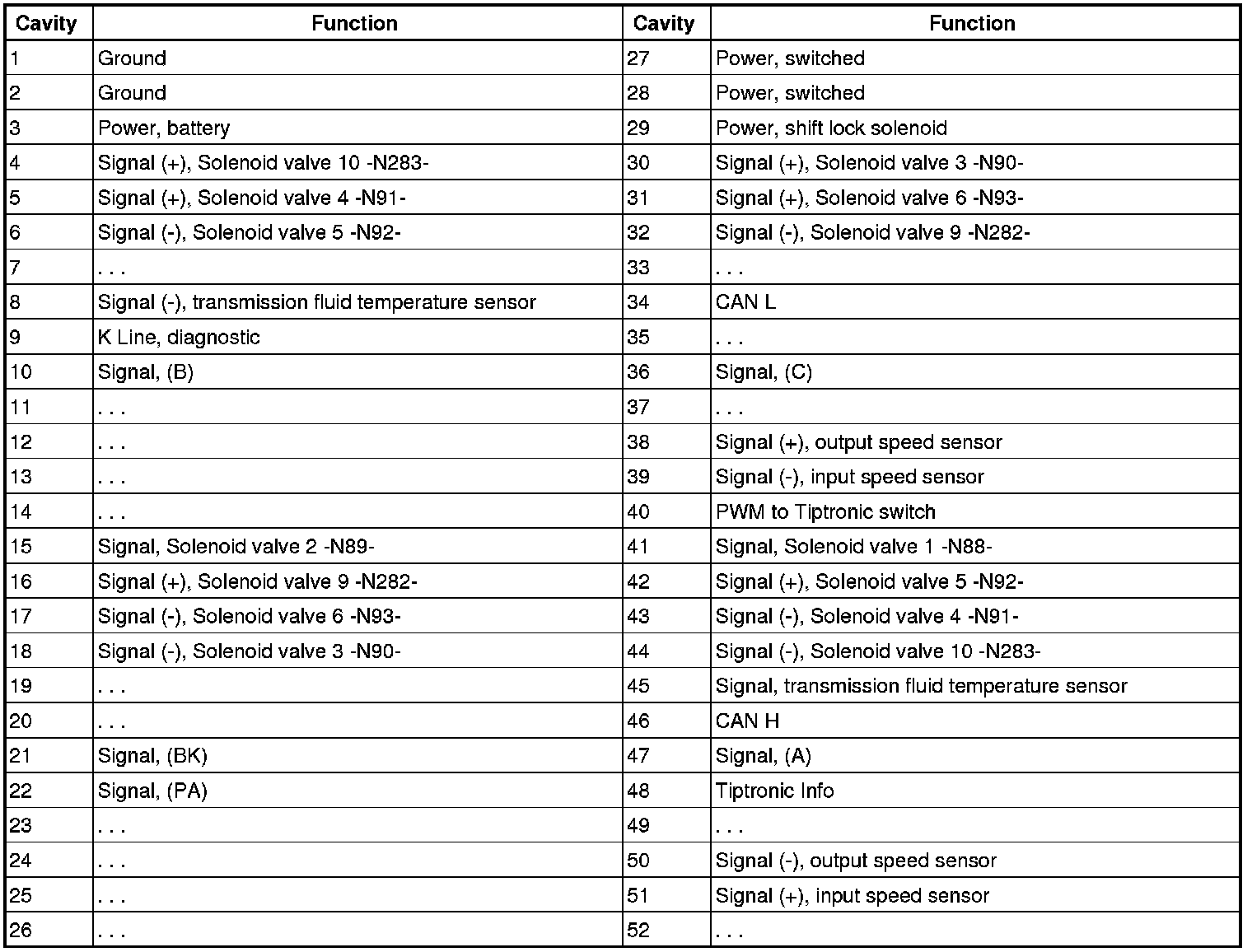

Transmission control module -J217-
09M Transmission
