Selector Shaft Seal

Selector Shaft Seal

Special tools, testers and auxiliary items required

• Thrust Piece (T10174)

Removing

- Remove the multifunction transmission range switch.

- Carefully pry out the selector shaft seal with a screwdriver. Be careful not to damage the selector shaft when doing this.

Installing

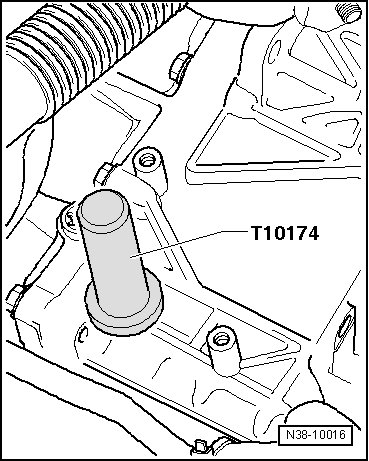

- Install the new seal using the thrust piece (T10174). Do not tilt the seal.






- Adjust the multifunction transmission range switch. Refer to => [ Multifunction Transmission Range Switch, Adjusting ] Adjustments.
