Left Rear Level Control System Sensor Assembly Overview, FWD

Left Rear Level Control System Sensor Assembly Overview, FWD

• Vehicle level sensor is available as replacement part only complete with coupling rod and upper and lower retaining plates.

• Replacing with subframe installed, refer to => [ Left Rear Level Control System Sensor, FWD ] Left Rear Level Control System Sensor, FWD.

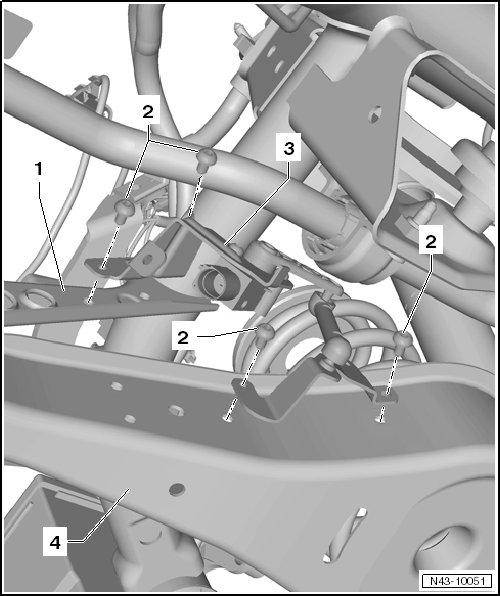

1 Subframe

2 Bolt

• M5 x 20

• 5 Nm

3 Left Rear Level Control System Sensor (G76)

• Complete with components.

• Lever - arrow - must point toward vehicle exterior.

• Removing and installing, refer to => [ Left Rear Level Control System Sensor, FWD ] Left Rear Level Control System Sensor, FWD

• If the sensor was removed and then installed, then a basic setting to the adaptive chassis must be performed. Refer to => [ Adaptive Chassis DCC, Basic Setting ] Testing and Inspection

• After replacing, perform basic setting of the headlamps using the Vehicle Diagnosis, Testing, and Information System (VAS 5051) in "Guided Fault Finding" function.

4 Lower Transverse Link
