Home >> Volkswagen >> 2010 >> Golf (5K1) L5-2.5L (CBUA) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Steering Column Control Module >> Locations >> Electronic Steering Column Lock Control Module -J764-

Electronic Steering Column Lock Control Module -J764-







Control modules in front part of vehicle

Electronic Steering Column Lock Control Module -J764-

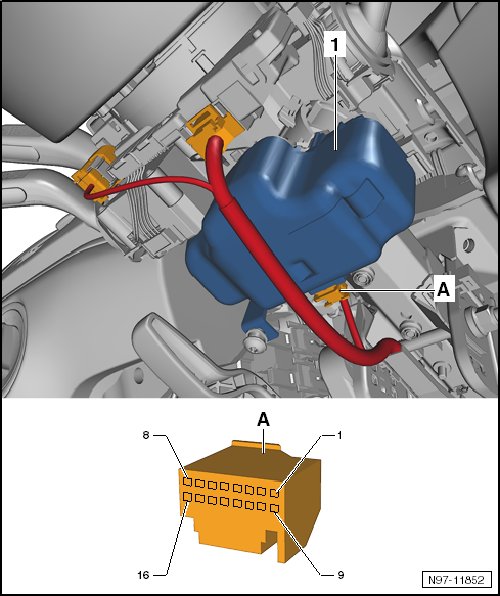

1 Electronic Steering Column Lock Control Module -J764-
behind the steering column trim
Connector:
• -A16-pin connector -T16s-
