Overview Of Ground Connections in Luggage Compartment

Ground Connections

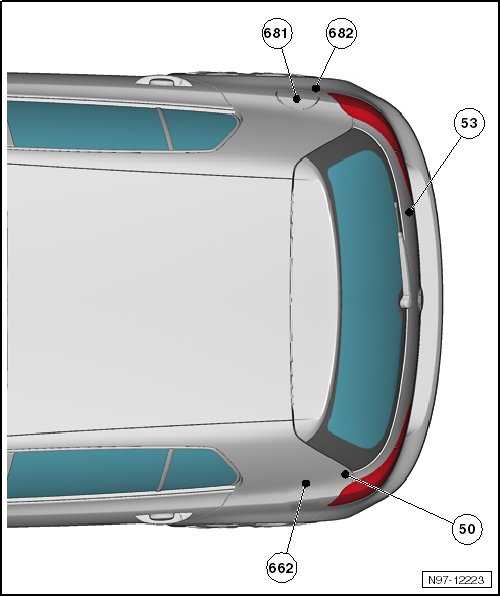

Overview of Ground Connections in luggage compartment







(681) - Ground connection 1 in right rear side panel
• Component location
• Not used

(682) - Ground connection 2 in right rear side panel
• Component location

(53) - Ground connection in rear lid, right
• Component location

(50) - Ground connection inside the luggage compartment on the left side
• Tightening specification: 9 Nm
• Component location:

(662) - Ground connection inside the left rear side panel
• Component location

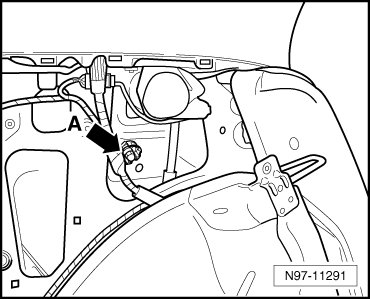

(681) - Ground Connection 1 (in right rear side panel) -Arrow A-
Not used

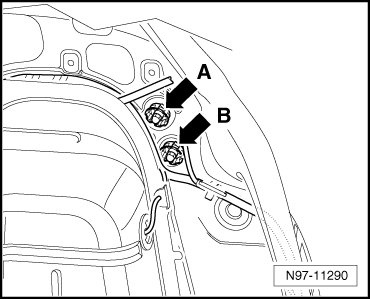

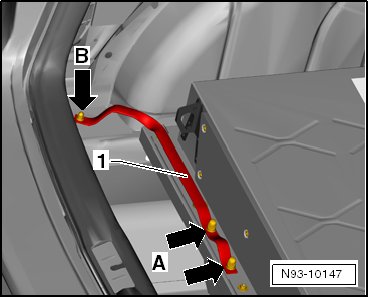

(682) - Ground Connection 2 (in right rear side panel) -Arrow B-

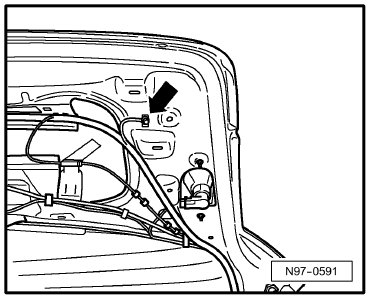

(53) - Ground Connection (in rear lid, right) -Arrow-





(50) - Ground connection inside the luggage compartment on the left side -arrow B-





(662) - Ground Connection (in left rear side panel) -arrow A-
