Multiport Fuel Injection - Fastener Tightening Specifications

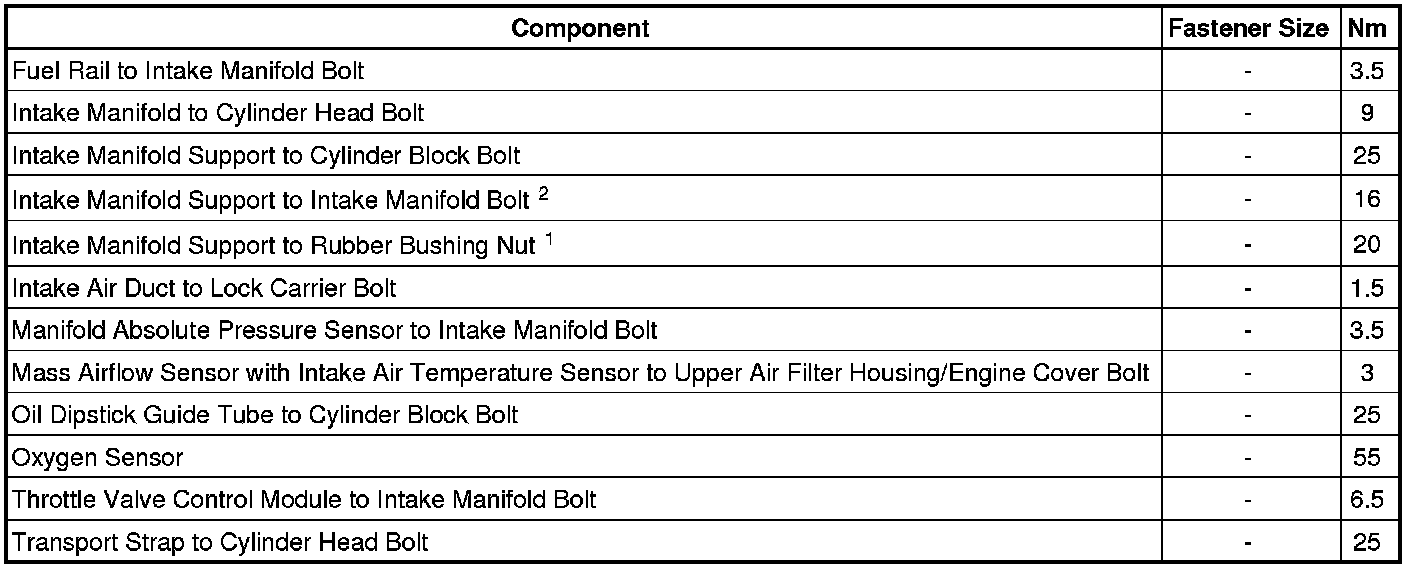

Fastener Tightening Specifications






• 1 Engine codes BGP and BGQ

• 2 Engine codes CBTA and CBUA

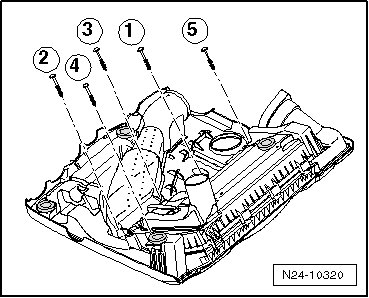

Lower Air Filter Housing Bolt Tightening Sequence and Specification






- Tighten the bolts, in sequence - 1 through 5 - to 2 Nm.
