Piston and Cylinder Dimensions

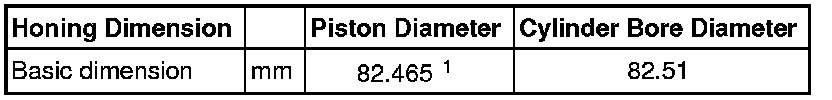

Piston and Cylinder Dimensions






• 1 The measurement does not include the graphite coating, which is 0.02 mm thick. The graphite coating wears off.
