Hazard Warning Switch: Service and Repair

Emergency Lamp Switch (E3)

Removal

- Switch off ignition, switch off all electrical consumers and remove ignition key.

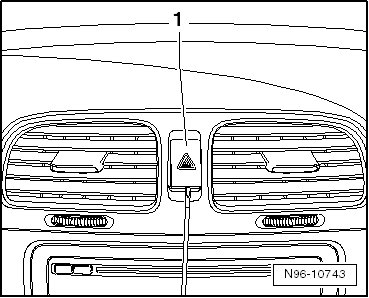

- Carefully pry off the cap - 1 - on the emergency flasher switch with a screwdriver.

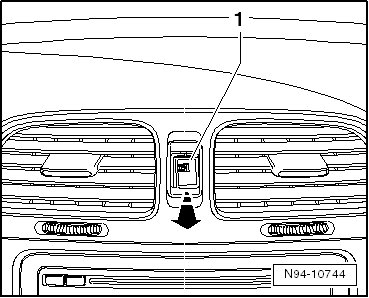

- Pull the emergency lamp switch - 1 - in - direction of arrow - out of the instrument panel.

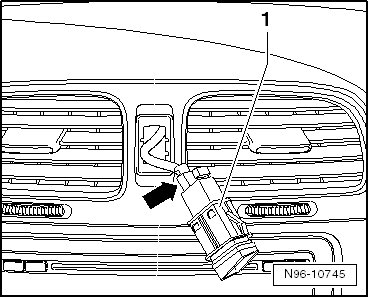

- Disconnect the connector - arrow - and remove the emergency lamp switch - 1 -.






Installation

Installation is performed in the reverse order of removal.
