Rear ABS Wheel Speed Sensors G44/G46

Rear ABS Wheel Speed Sensors G44/G46

Removing

- Raise the vehicle.

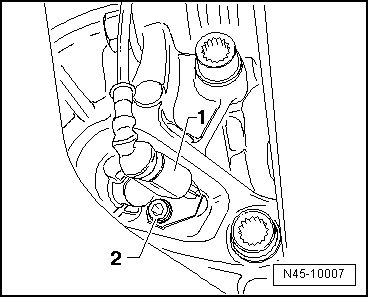

- Disconnect the speed sensor connector - 1 -.






- Remove the bolt - 2 -.

- Remove the ABS speed sensor.

Installing

- Before inserting the speed sensor, clean the hole inner surface and coat the speed sensor all round using hot bolt paste (G 052 112 A3).

- Install the speed sensor and tighten the bolt to 8 Nm.

- Connect the speed sensor connector.
