Front ABS Wheel Speed Sensors G45/G47

Front ABS Wheel Speed Sensors G45/G47

Removing

- Raise the vehicle.

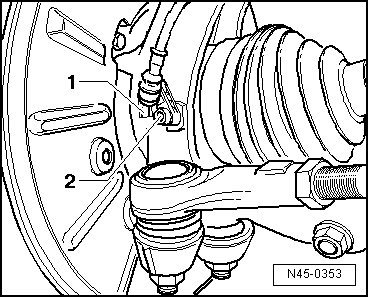

- Disconnect the wheel speed sensor connector - 1 -.






- Remove the bolt - 2 -.

- Remove the wheel speed sensor.

Installing

- Before inserting the speed sensor, clean the hole inner surface and coat the speed sensor all round using hot bolt paste (G 052 112 A3).

- Insert the speed sensor into the hole in the wheel bearing housing and tighten the bolt to 8 Nm.

- Connect speed sensor to speed sensor wiring.
