Front Door Crash Sensors, Golf from MY 04

• Removal and installation is described for the right side of the vehicle. Removing and installing on the left side is identical.

Removing


Always read the General Safety Precautions before working on airbags, belt tensioners and battery cut-out units (pyrotechnical components). Refer to => [ Airbag, Belt Tensioner and Battery Cut-Out Units, General Safety Precautions ] Airbag, Belt Tensioner and Battery Cut-Out Units, General Safety Precautions.

- Disconnect the battery.

- Remove outer door panel.

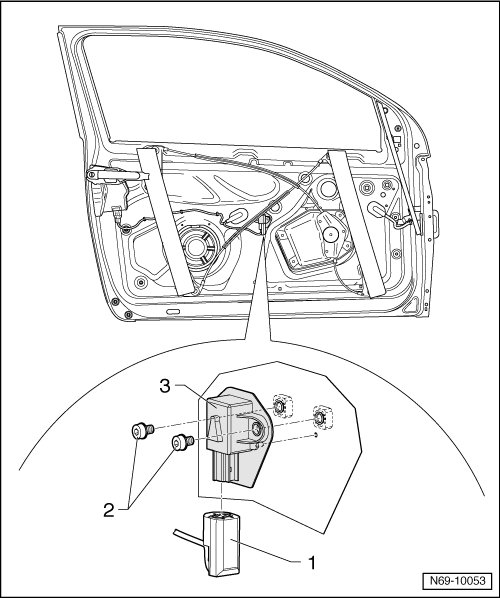

- Disconnect the wiring harness - 1 - from the crash sensor - 3 -.

- Remove the two bolts - 2 - (2.5 Nm).






Installation

- Install in reverse order of removal.

- Switch on ignition.


Make sure no one is in the vehicle.

- Connect the battery.
