Electronic Damping Control Module Bracket

Electronic Damping Control Module Bracket

Removing

- Remove the electronic damping control module (J250). Refer to => [ Electronic Damping Control Module ] Electronic Damping Control Module.

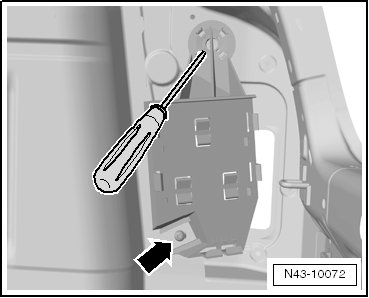

- Remove the bolt - arrow -.






- Push the 4 tabs on the bracket outward with a screwdriver, one after the other. When doing this, tilt the bracket slightly and then turn it clockwise and remove it.

Installing

- Attach the bracket into the top of the side panel and then turn it into the mount.

- Install the bolt - arrow -.






- Install the electronic damping control module. Refer to => [ Electronic Damping Control Module ] Electronic Damping Control Module.
