Suspension Control Module: Diagrams






Level Control System - Connector Views

Electronic damping control module -J250-

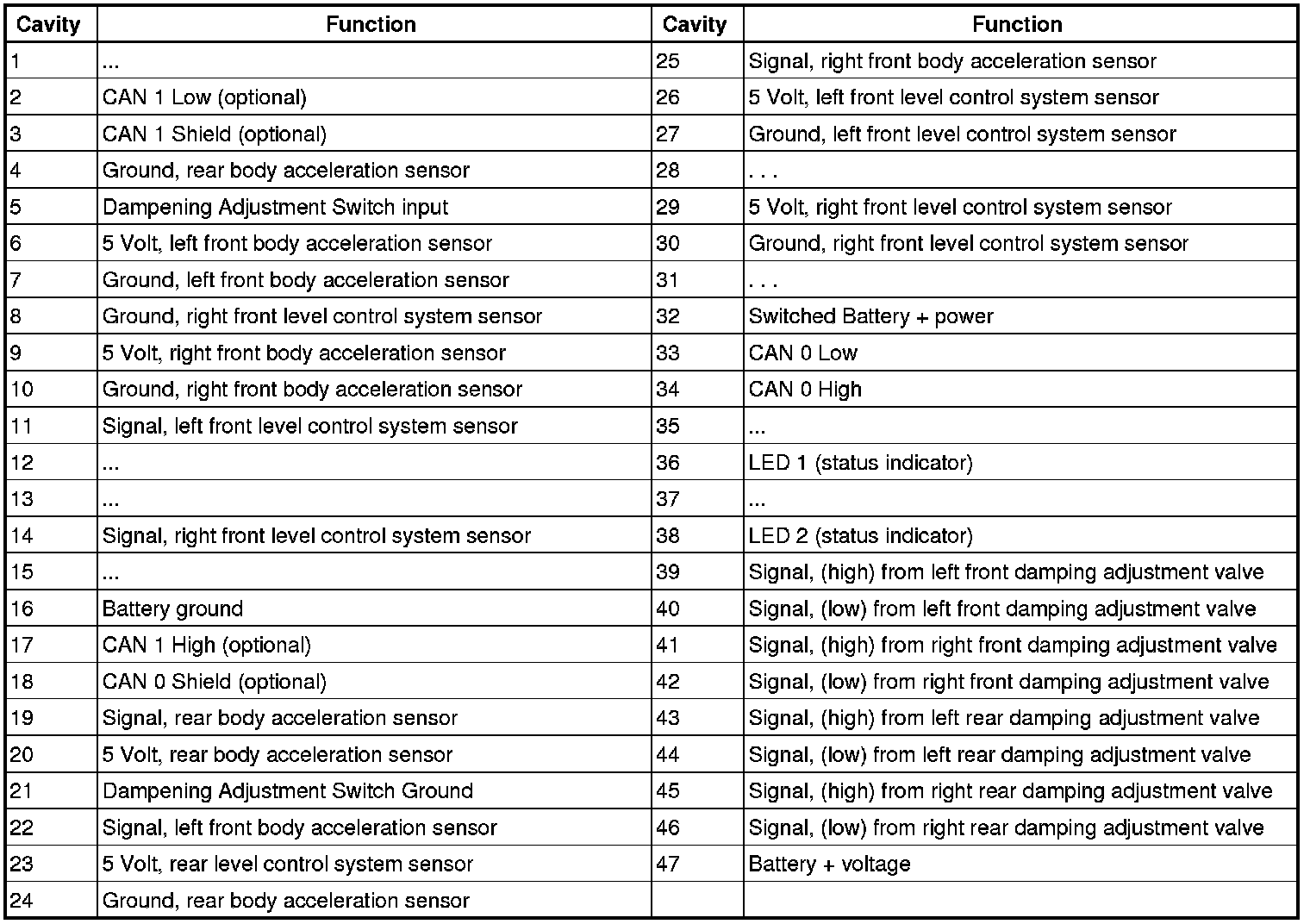

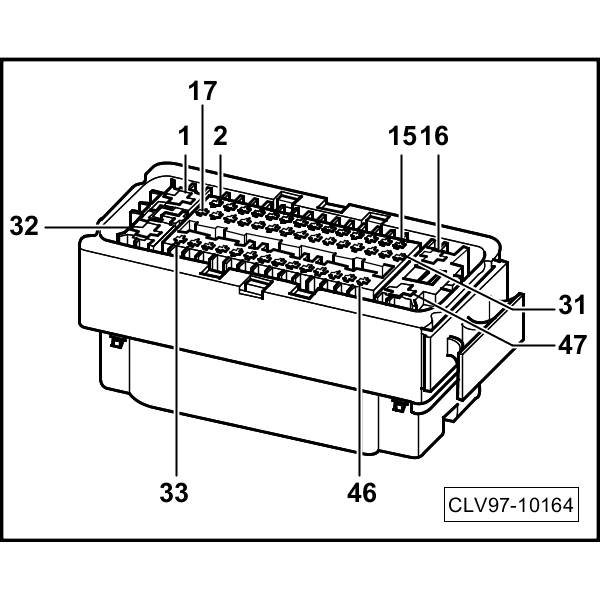

Connector, 47 Pin
