Windshield Wiper Switch (E)







Windshield Wiper Switch (E)


Follow the specified sequence when removing and installing steering column switch components. Refer to => [ Steering Column Switch Components, Removal and Installation Sequence ] Steering Column Switch Components, Removal and Installation Sequence.

Removal

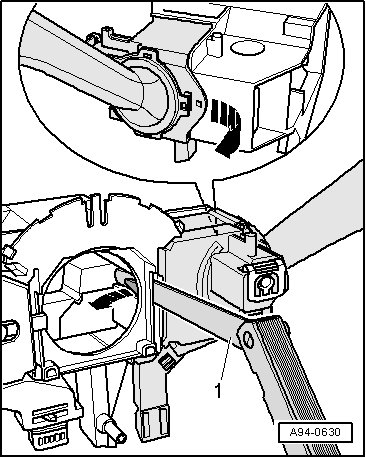

• The steering column switch is shown removed.

- Release retaining clips - arrows - using a 1.0 mm feeler gauge - 1 - and remove Windshield Wiper Switch toward rear (toward rear of vehicle).






Installation

Install in reverse order of removal, noting the following:

• Windshield Wiper Switch must engage audibly.
