Steering Control Module: Locations
Control modules in front part of vehicle
Power Steering Control Module -J500-

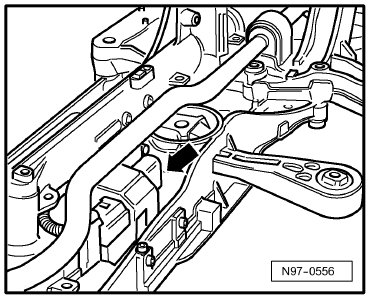

Component Location:
On the steering on the center subframe -Arrow-

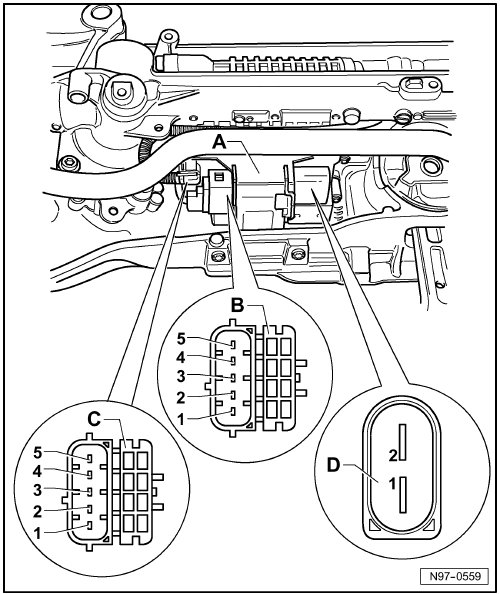

Pin Arrangements:
A - Power Steering Control Module -J500-
Pin Connectors:
B - 5-pin connector -T5g-
C - 5-pin connector -T5h-
D - 2-pin connector -T2a-
