Steering Control Module: Diagrams






Steering System - Connector Views

Power steering control module -J500- Power Steering

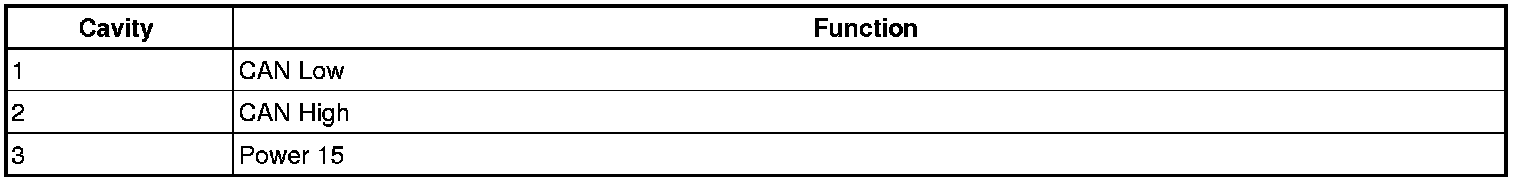

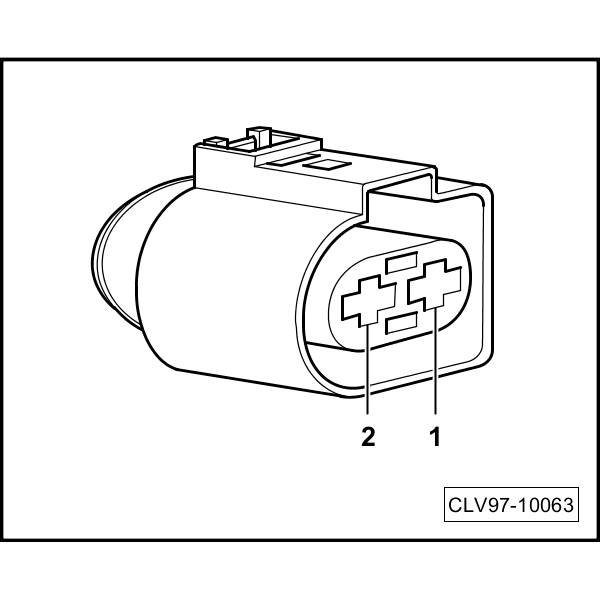

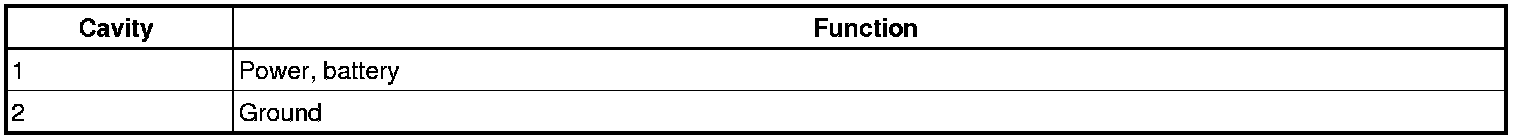

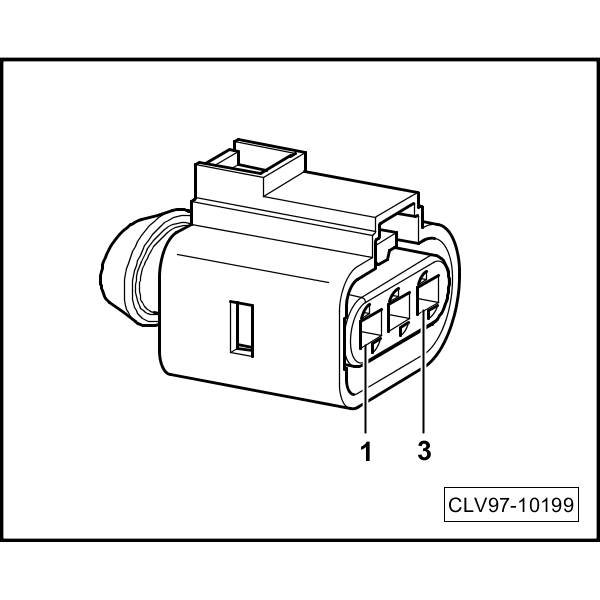

3 - Pins

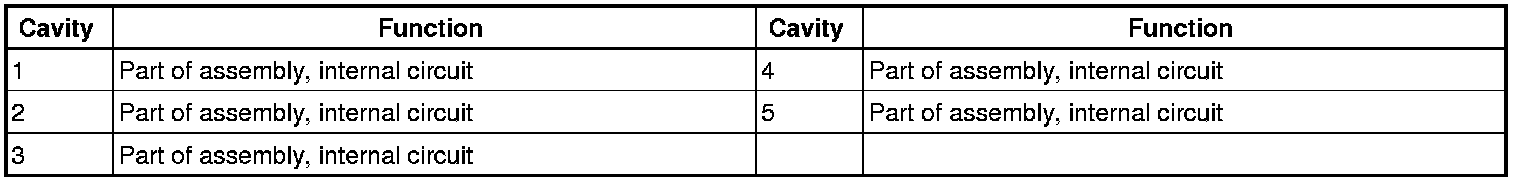

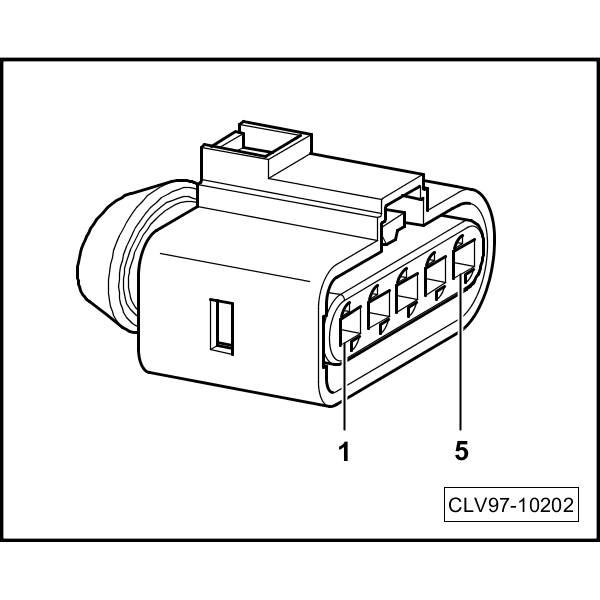

5 - Pins
