Steering Column Switch With KESSY, From 06.10, Overview
Steering Column Switch With KESSY, From 06.10, Overview

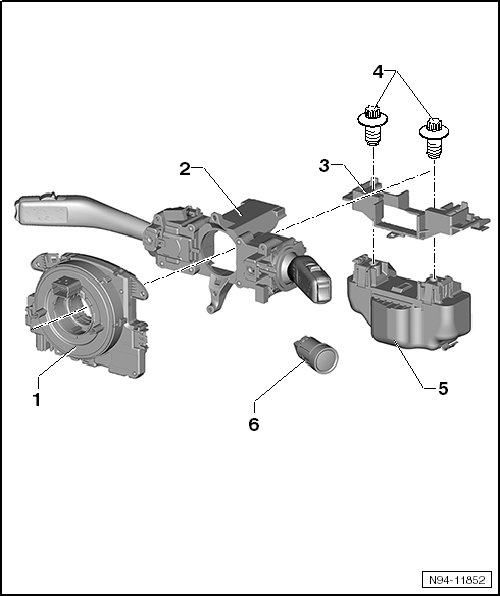

• There are different versions of the steering column electronic systems control module (J527) , the steering column combination switch (E595) and the steering column switch base carrier depending on the manufacturer (Valeo or Kostal). The Valeo version is shown in the illustration.
1 - Steering Column Electronic Systems Control Module (J527)
• Pay attention to the removing/installing sequence. Refer to => [ Steering Column Switch Components, Removal and Installation Sequence ] Steering Column Switch Components, Removal and Installation Sequence.
• Removing and installing, Valeo, refer to => [ Steering Column Electronic Systems Control Module (J527), Valeo ] Steering Column Electronic Systems Control Module (J527), Valeo.
• Removing and installing, Kostal, refer to => [ Steering Column Electronic Systems Control Module (J527), Kostal ] Steering Column Electronic Systems Control Module (J527), Kostal.
• Coding, refer to => [ Steering Column Electronic Systems Control Module (J527), With KESSY, From 06.10, Coding ] Steering Column Electronic Systems Control Module (J527), With KESSY, From 06.10, Coding.
• Tightening specification: 1.5 Nm
2 - Steering Column Combination Switch (E595)
• Pay attention to the removing/installing sequence. Refer to => [ Steering Column Switch Components, Removal and Installation Sequence ] Steering Column Switch Components, Removal and Installation Sequence.
• Removing and installing, Valeo, refer to => [ Steering Column Combination Switch (E595), Valeo ] Steering Column Combination Switch (E595), Valeo
• Removing and installing, Kostal, refer to => [ Steering Column Combination Switch (E595), Kostal ] Steering Column Combination Switch (E595), Kostal.
3 - Base Carrier For Steering Column Switches
• Pay attention to the removing/installing sequence. Refer to => [ Steering Column Switch Components, Removal and Installation Sequence ] Steering Column Switch Components, Removal and Installation Sequence.
• Removing and installing, Valeo, refer to => [ Steering Column Switch Base Carrier, Valeo ] Steering Column Switch Base Carrier, Valeo.
• Removing and installing, Kostal, refer to => [ Steering Column Switch Base Carrier, Kostal ] Steering Column Switch Base Carrier, Kostal.
4 - Shear Bolts
• M8 x 20
• Break-off torque: approximately 15 Nm
5 - Electronic Steering Column Lock Control Module (J764)
The electronic steering column lock control module (J764) and the steering column switch base carrier are removed and installed together.
• Pay attention to the removing/installing sequence. Refer to => [ Steering Column Switch Components, Removal and Installation Sequence ] Steering Column Switch Components, Removal and Installation Sequence.
• Removing and installing, refer to => [ Electronic Steering Column Lock Control Module (J764) ] Electronic Steering Column Lock Control Module (J764).
• Coding, refer to => [ Electronic Steering Column Lock Control Module (J764), With KESSY, From 06.10, Coding ] Electronic Steering Column Lock Control Module (J764), With KESSY, From 06.10, Coding.
6 - Access/Start Authorization Button (E378)
• Removing and installing, refer to => [ Start System Button (E378) ] Description and Operation.
