Radiator Cooling Fan Control Module: Locations







Control modules in front part of vehicle

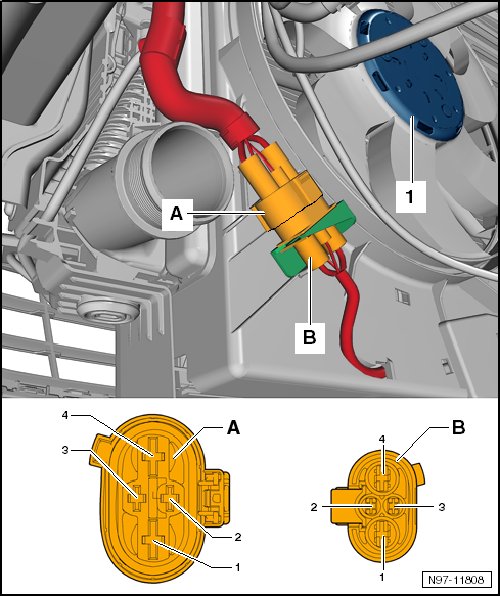

Coolant fan control module -J293-







1 Coolant fan control module -J293-
Connector:
• -A/B-pin connector -T4x- on the wiring harness
