Left rear door control module -J388-







Control modules in rear part of vehicle

Left rear door control module -J388-









Component Location:


On rear left door inner part -Arrow-

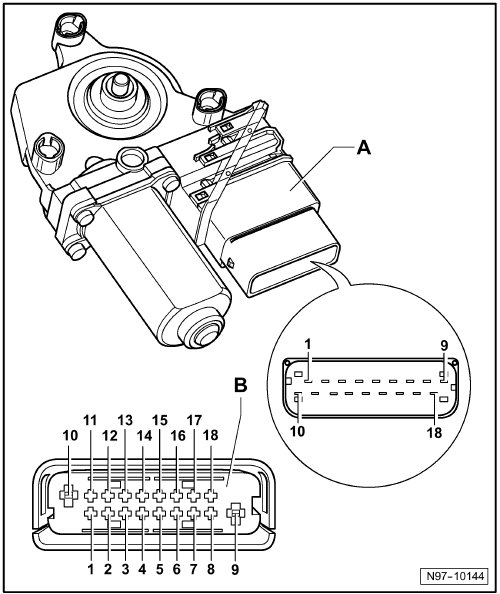

Pin Arrangements:







A - Left rear door control module -J388-

B - 18-pin connector -T18c-
