Communications Control Module: Locations







Control modules in rear part of vehicle

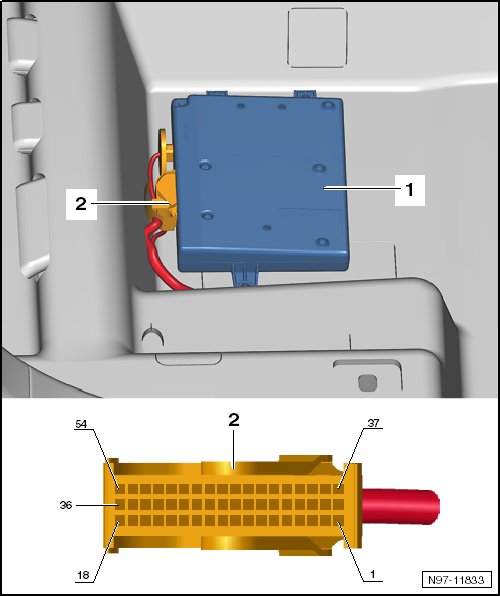

Cell phone operating electronics control module -J412-







1 Cell phone operating electronics control module -J412-
under the front passenger seat
Connector:
2 54-Pin Connector -T54-
