Control Module: Locations

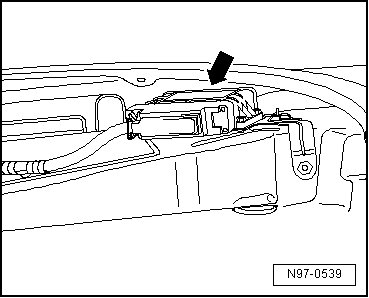

Control modules in front part of vehicle

Transmission Control Module (TCM) -J217-









Component Location:

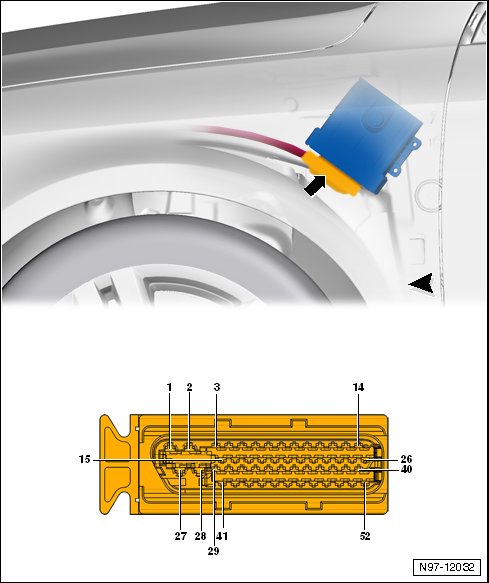

in the left front wheel housing -Arrow-


Pin Arrangements:







- Transmission Control Module (TCM) -J217- -Arrow-
Connector:
52-pin connector -T52-
