Fuel Rail and Injectors Overview

Fuel Rail and Injectors Overview

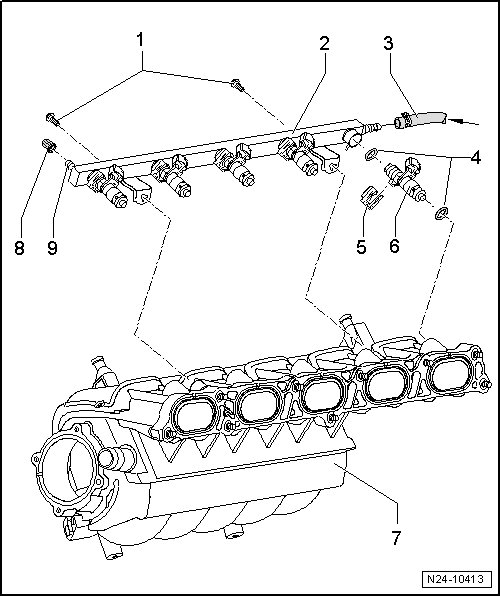

1 Bolt

• 3.5 Nm

2 Fuel Rail

3 Fuel Supply Line

4 O-ring

• Always replace.

• Lubricate with clean engine oil.

5 Retaining Clip

• Make sure the clip is correctly seated on the fuel injector and fuel rail.

6 Fuel Injector (N30, N31, N32, N33, N83)

• Removing and installing, refer to => [ Fuel Injectors ] Fuel Injectors.

7 Intake Manifold

8 Cap

9 Bleed Valve
