Center Vent Temperature Sensor (G191)

Center Vent Temperature Sensor (G191)

Removing

- Remove the instrument panel cover..

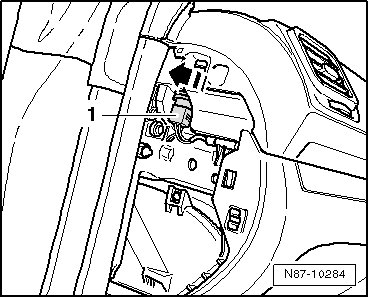

- Disconnect connector at center outlet temperature sensor - 1 -.






- Rotate center outlet temperature sensor - 2 -, rotate 90° - in direction of arrow - and remove from instrument panel.

Installing

Install in reverse order of removal.
