Muffler: Description and Operation

Muffler Overview

• After exhaust system repairs, make sure the exhaust system is not under stress and that it has sufficient clearance from the body. If necessary, loosen the clamp(s) and align the exhaust pipe so that sufficient clearance is maintained to the body and the retaining rings carry uniform loads.

• Gaskets and self-locking nuts must be replaced.

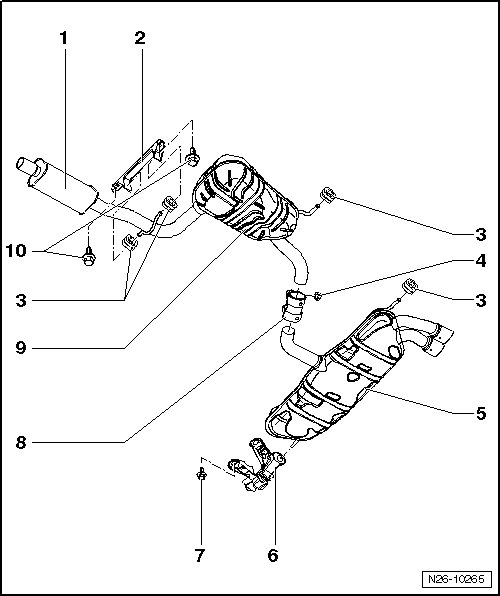

1 Front Muffler

2 Suspended Mount

3 Retaining Ring

• Replace if damaged.

4 Nut

• 25 Nm

5 Rear Muffler

• Factory installed with the front muffler as one unit. If repairs are necessary, replace separately.

• Align the exhaust system free of tension. Refer to => [ Exhaust System, Aligning ] Service and Repair.

• Separating the exhaust system. Refer to => [ Muffler ] Service and Repair.

6 Suspended Mount

• Replace if damaged.

7 Bolt

• 25 Nm

8 Repair Clamp

• For individual replacement of the front and rear mufflers.

• Installed position, refer to => [ Muffler ] Service and Repair.

• Tighten the nuts evenly.

9 Center Muffler

• Factory installed with the rear muffler as one unit. If repair is necessary, replace separately.

• Align the exhaust system free of tension. Refer to => [ Exhaust System, Aligning ] Service and Repair.

• Separating the exhaust system. Refer to => [ Muffler ] Service and Repair.

10 Bolt

• 25 Nm
