Exhaust Manifold Overview

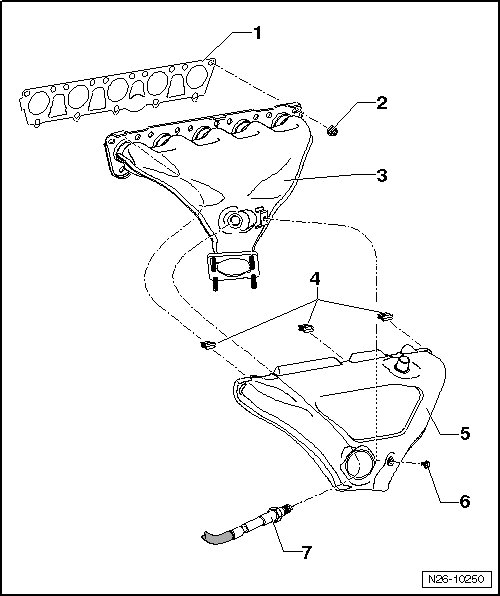

Exhaust Manifold Overview






1 Gasket

• Always replace.

2 Nut

• 25 Nm

• Always replace.

3 Exhaust Manifold

• Coat the stud bolts on the cylinder head with hot bolt paste.

• Remove upward.

4 Clip

5 Heat Shield

6 Bolt

• 10 Nm

7 Heated Oxygen Sensor (G39)

• 55 Nm

• Use the ring spanner 7-piece set (3337) for removal and installation.

• When reusing an old oxygen sensor again, only use hot bolt paste to grease the threads. Do not let the paste get onto the slits of the oxygen sensor body.

• Connector color: Black.
