Engine Assembly

Special Tools

Special tools, testers and auxiliary items required

• Hose Clamps up to 40 mm (3093)

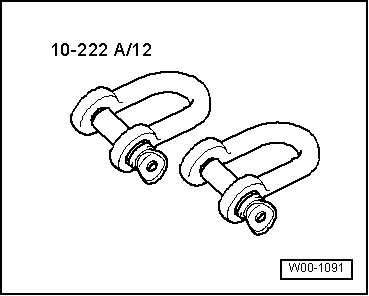

• Shackle (10-222 A/12)

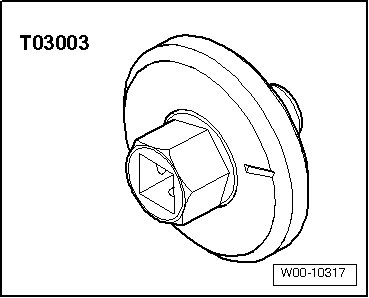

• Crankshaft Adapter (T03003)

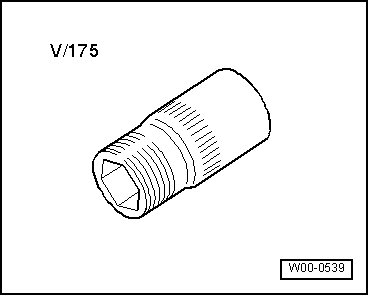

• Socket SW15 (V/175)






• Hose Clamps up to 25 mm Dia. (3094)






• Torque Wrench (40-200 Nm) (V.A.G 1332)











Special tools, testers and auxiliary items required

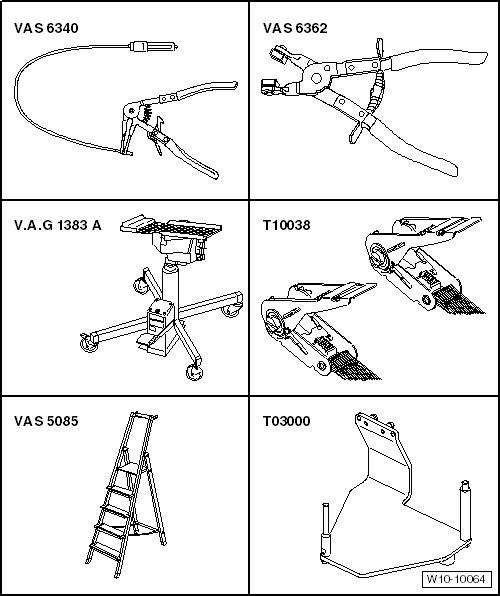

• Hose Clip Pliers (VAS 6340)

• Hose Clip Pliers (VAS 6362)

• Engine-/Gearbox Jack (V.A.G 1383 A)

• Tensioning Strap (T10038)

• Step Ladder (VAS 5085)

• Engine Holder Bracket (T03000)






Special tools, testers and auxiliary items required

• Lifting Tackle (3033)

• Shop Crane - Load Cap = 700-1200 KG (VAS 6100)

• Engine and Transmission Holder (VAS 6095)

• Engine Lateral Bracket (T03001)

• Transport Arm (T03002)
