Ribbed Belt Tensioner, Generator, Power Steering Pump and Coolant Pump

Ribbed Belt Tensioner, Generator, Power Steering Pump and Coolant Pump


Note the following whenever working inside the engine compartment due to limited space:

• Route all lines and wires in their original locations.

• Ensure sufficient clearance to all moving or hot components.

- Remove the ribbed belt. Refer to => [ Ribbed Belt ] Ribbed Belt.

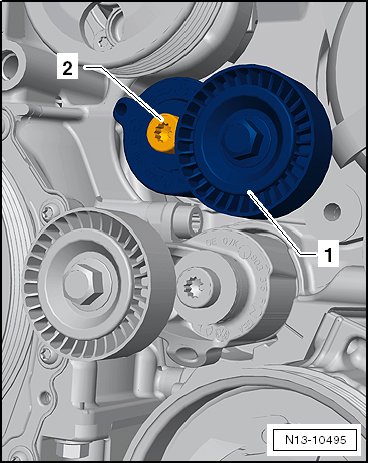

- Loosen the bolt - 2 - for the belt tensioner - 1 - and remove the tensioner.






- Install in reverse order of removal. Note the following:

Tightening Specification
