Ribbed Belt Tensioner, A/C Compressor

Ribbed Belt Tensioner, A/C Compressor


Note the following whenever working inside the engine compartment due to limited space:

• Route all lines and wires in their original locations.

• Ensure sufficient clearance to all moving or hot components.

- Remove the ribbed belt. Refer to => [ Ribbed Belt ] Ribbed Belt.

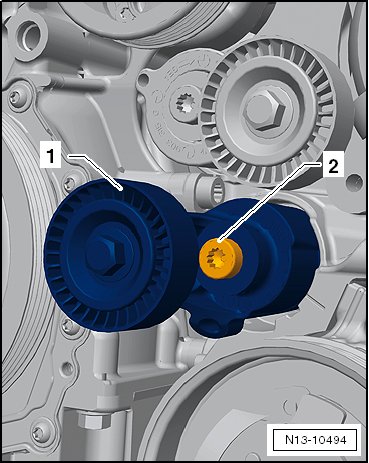

- Loosen the bolt - 2 - for the belt tensioner - 1 - and remove the tensioner.






- Install in reverse order of removal. Note the following:

Tightening Specification
