Crankshaft Axial Clearance, Checking

Crankshaft Axial Clearance, Checking

Special tools, testers and auxiliary items required

• Dial Gauge Holder (VW 387)

• Dial Gauge 0-10 mm (VAS 6079)

Procedure

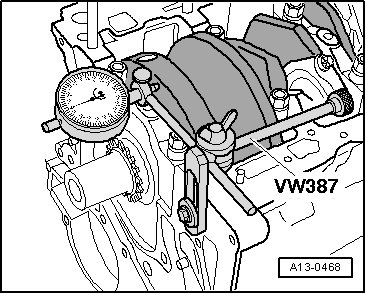

- Install the dial gauge (VAS 6079) with the dial gauge holder (VW 387) onto the cylinder block as shown in the illustration.

- Place the dial gauge against the crankshaft counterweight.

- Press the crankshaft against the dial gauge by hand and set the gauge to "0".

- Press the crankshaft off the dial gauge and read the measurement.

Axial clearance:

New: 0.07 to 0.21 mm

Wear limit: 0.30 mm
