Removal and Replacement

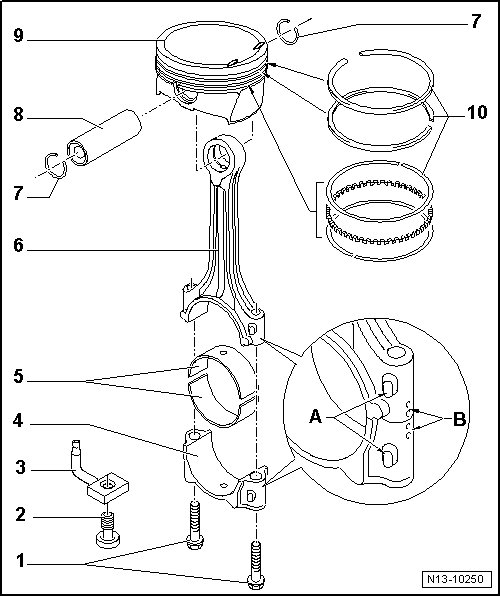

Pistons and Connecting Rod Overview
• The engine is to be secured to the engine lateral bracket (T03001) when performing assembly work.
1 Bolt
• 30 Nm + an additional 90° (1/4) turn.
• Always replace.
• Lubricate the threads and contact surface.
• Tighten to 30 Nm to measure radial play, do not tighten the additional 90° turn.
2 Pressure Relief Valve
• 27 Nm
• Opening pressure: 1.3 to 1.6 bar excess pressure.
3 Oil Spray Jet
• For piston cooling.
4 Connecting Rod Bearing Cap
• Pay attention to the installed position.
• Due to the separation procedure (cracking) for the connecting rod, the connecting rod bearing cap only fits in one position and only on the appropriate connecting rod.
• Mark which cylinder the cap belongs to.
• Installed position: the marks - A - point to the belt pulley side.
5 Bearing Shell
• Note the installed position, refer to => [ Bearing Shell Installed Position ].
• Do not interchange used bearing shells (mark them).
• Axial play:
New: 0.10 to 0.35 mm
Wear limit: 0.4 mm
• Measure radial clearance using Plastigage(R):
New: 0.02 to 0.06 mm
Wear limit: 0.09 mm
Do not rotate the crankshaft when measuring radial play.
6 Connecting Rod
• With a cracked bearing cap.
• Separating new connecting rods. Refer to => [ New Connecting Rod, Separating ] Procedures.
• Always replace as a set.
• Mark which cylinder the connecting rod belongs to.
• Installed position: The marks - A - point to the belt pulley side.
7 Circlip
8 Piston Pin
• If difficult to move, heat the piston to 60 °C (140 °F).
• Remove and install using a pilot drift (VW 222 A).
9 Piston
• Checking, refer to => [ Piston, Checking ] Testing and Inspection.
• Mark the installed position and cylinder allocation.
• The arrow on the piston face points toward the belt pulley side.
• Install using a piston ring compressor.
• Piston and cylinder bore, checking. Refer to => [ Pistons and Cylinder Bore, Checking ] Testing and Inspection.
10 Piston Rings
• Offset gaps by 120°.
• Use piston ring pliers for removal and installation.
• Marks face toward the piston crown.
• Checking the ring gap. Refer to => [ Piston Ring Gap, Checking ] Testing and Inspection.
• Checking the piston ring groove clearance. Refer to => [ Piston Ring Groove Clearance, Checking ] Testing and Inspection.
Bearing Shell Installed Position
Bearing shell - 1 - with a connecting rod oil bore - arrow -.
Bearing shell - 2 - without a oil bore for the connecting rod cap.
- Place the bearing shells centrally into the connecting rod and connecting rod bearing cap.
Dimension - a - must be the same on the left and right.
