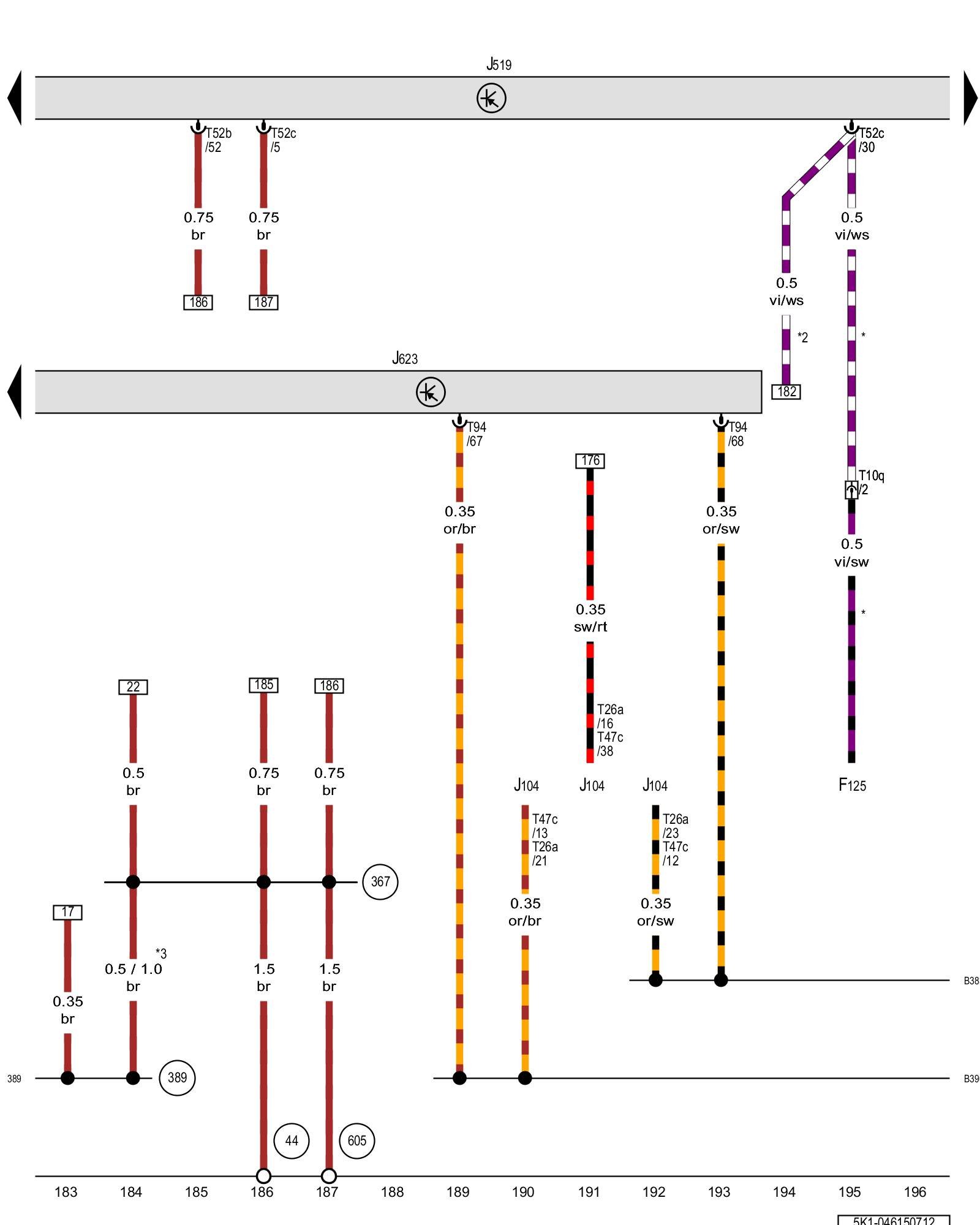

Diagram 46/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F125 - Multifunction transmission range switch
Auto Trans 09G
Multifunction Transmission Range Switch -F125-

J104 - ABS control module Control modules in front part of vehicle - Overview of Control Modules [1][2]Diagrams

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J623 - Engine control module, in the center plenum chamber Control modules in front part of vehicle - Overview of Control Modules

T2 - Double connector

T10q - 10-pin connector, on the transmission

T26a - 26-pin connector

T47c - 47-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

T94 - 94-pin connector

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior

(367) - Ground connection 2 (in main wiring harness)

(389) - Ground connection 24 (in main wiring harness)

(605) - Ground connection on upper steering column Overview Of Ground Connections in Interior

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

* - Only for vehicles with automatic transmission

*2 - Only for vehicles with a manual transmission

*3 - from May 2011

Previous Diagram 46/14 (Tracks 169-182)

Next Diagram 46/16 (Tracks 197-210)
