Diagram 46/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

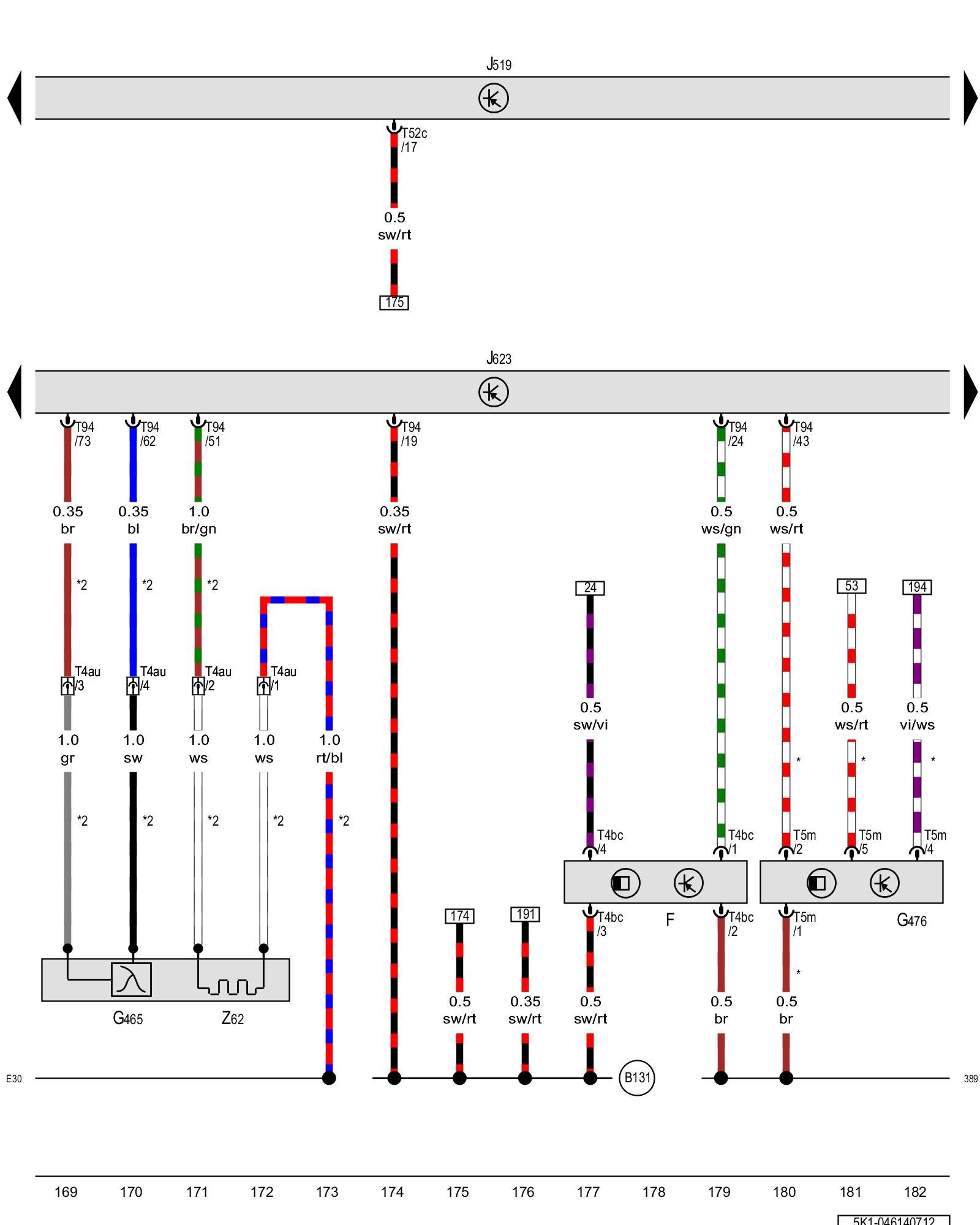

Brake lamp switch, Oxygen sensor in bank 1 center three way catalytic converter, Clutch position sensor, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake lamp switch ABS Mark 70 (ABS/ASR) [1][2]Brake Light Switch

G465 - Oxygen sensor in bank 1 center three way catalytic converter Exhaust System Overview Oxygen Sensor in Bank 1 Center Three way Catalytic Converter -G465- / Oxygen Sensor 3 Heater -Z62-

G476 - Clutch position sensor Diagrams

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J623 - Engine control module, in the center plenum chamber Control modules in front part of vehicle - Overview of Control Modules

T4au - 4-pin connector, near the oxygen sensor

T4bc - 4-pin connector

T5m - 5-pin connector

T52c - 52-pin connector

T94 - 94-pin connector

Z62 - Oxygen sensor 3 heater Oxygen Sensor in Bank 1 Center Three way Catalytic Converter -G465- / Oxygen Sensor 3 Heater -Z62-

(389) - Ground connection 24 (in main wiring harness)

(B131) - Connection 54 (in interior wiring harness)

(E30) - Connection 87a (in engine wiring harness)

* - Only for vehicles with a manual transmission

*2 - Depending on equipment

Previous Diagram 46/13 (Tracks 155-168)

Next Diagram 46/15 (Tracks 183-196)
