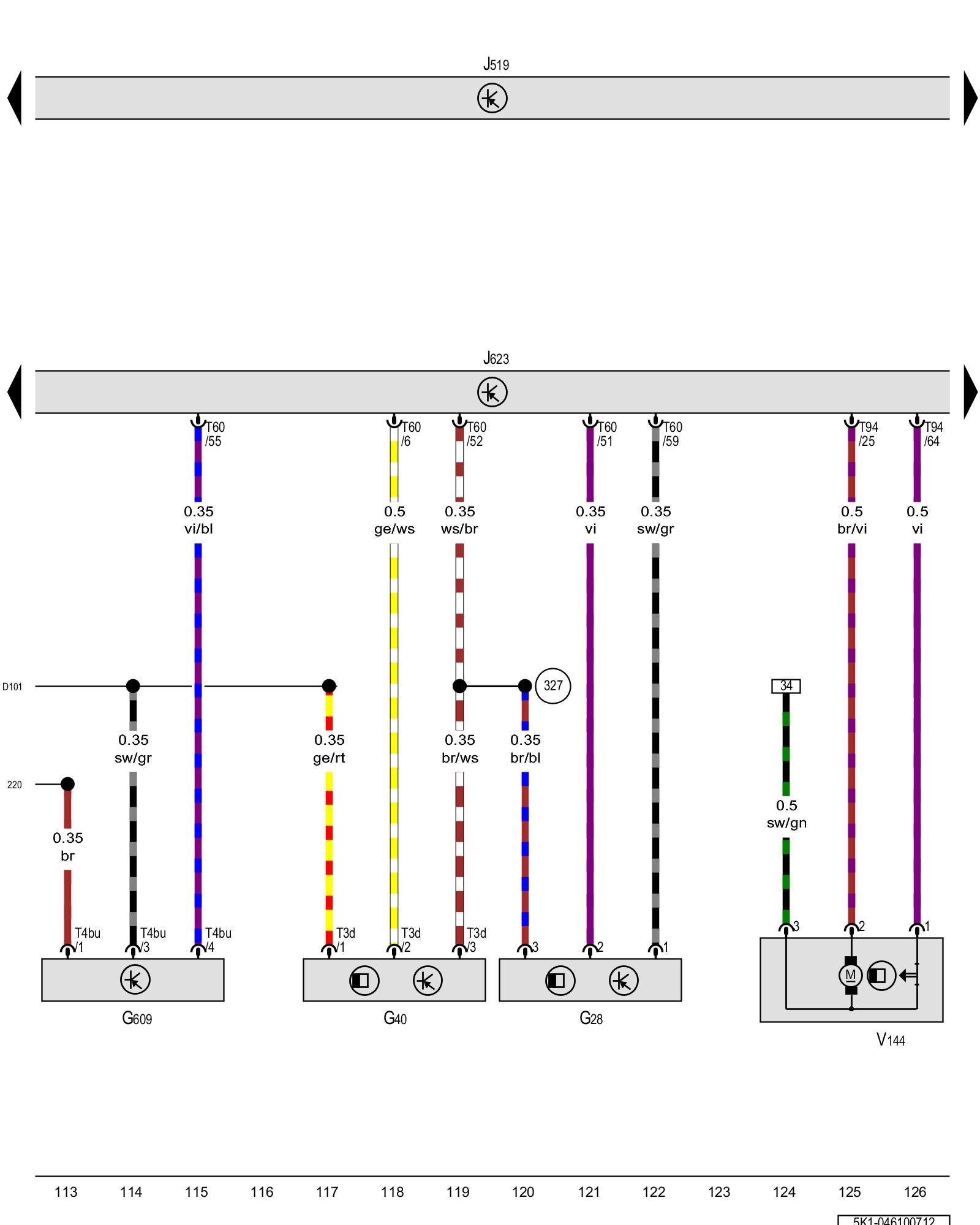

Diagram 46/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine speed sensor, Camshaft position sensor, Secondary air injection sensor 1, Engine control module, Leak detection pump





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G28 - Engine speed sensor
Locations
[1][2]Diagrams

G40 - Camshaft position sensor
Locations
[1][2]Camshaft Position Sensor

G609 - Secondary air injection sensor 1
Locations
[1][2]Air Injection Flow Sensor

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J623 - Engine control module, in the center plenum chamber Control modules in front part of vehicle - Overview of Control Modules

T3d - 3-pin connector

T4bu - 4-pin connector

T60 - 60-pin connector

T94 - 94-pin connector

V144 - Leak detection pump
Locations
[1][2]Diagrams

(220) - Sensor ground connection (in engine compartment wiring harness)

(327) - Sensor ground connection (in engine compartment wiring harness)

(D101) - Connection 1 (in engine compartment wiring harness)
