LR Level Control System Sensor -G76-

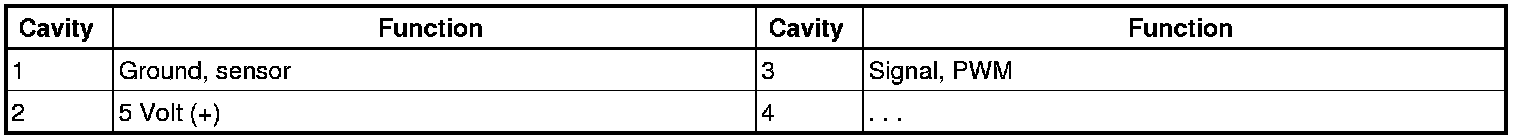

Level Control System - Connector Views

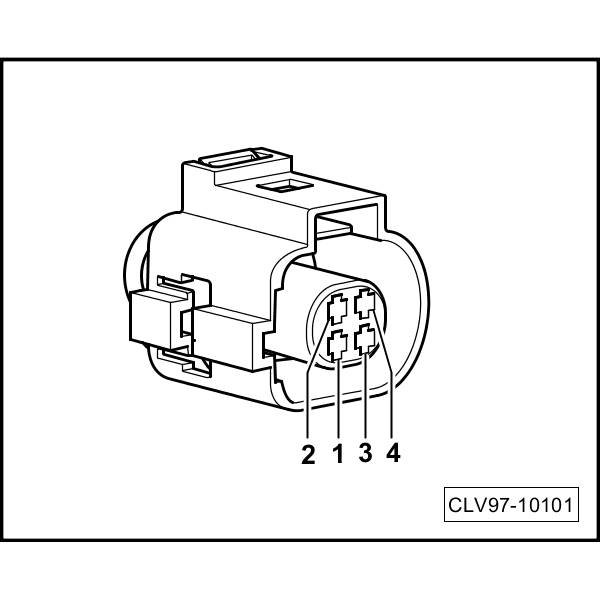

Left rear level control system sensor -G76-
