Parking Aid Control Module -J446-






Parking Aid System

Parking aid control module -J446-

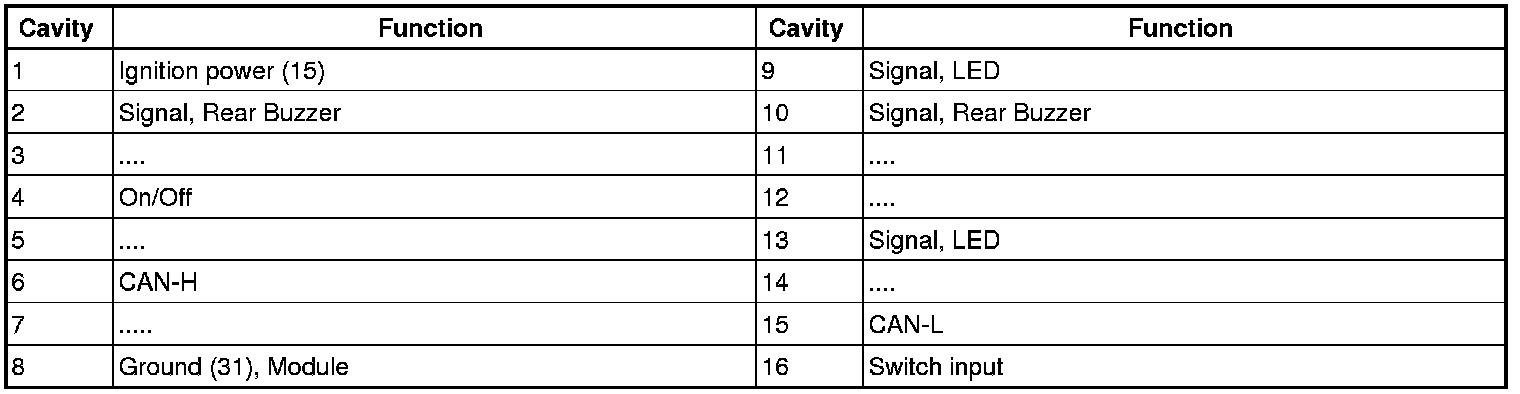

Connector A - 16 pins

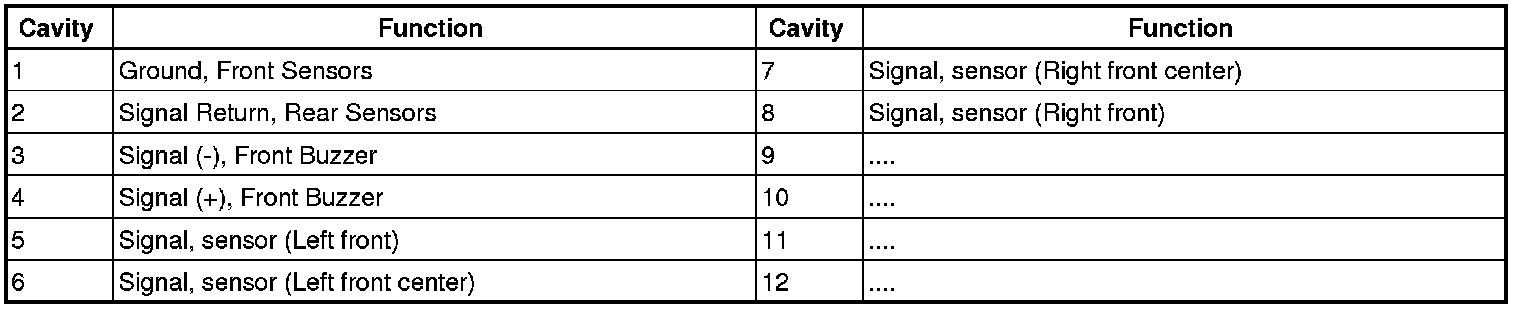

Connector B - 12 pins

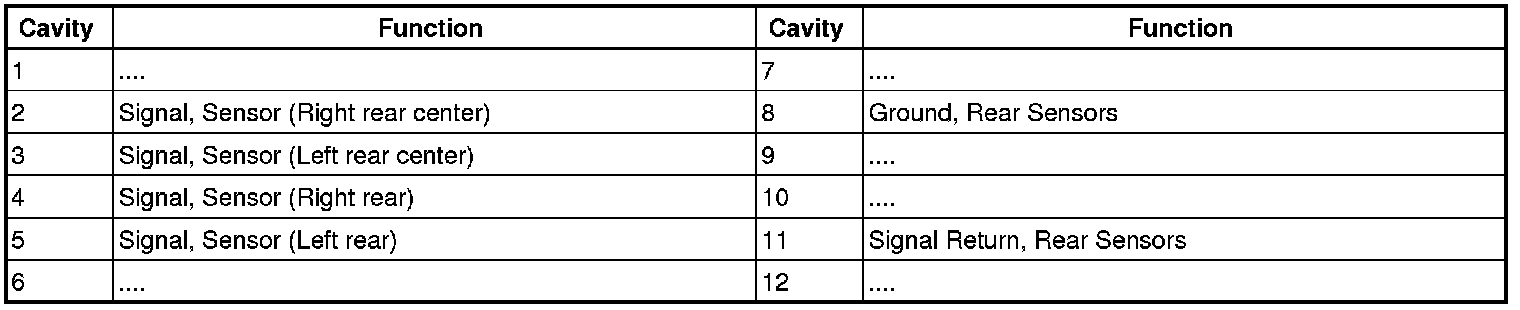

Connector C - 12 pins
