A/C Control Module -J301-






Climate/ Climatronic Systems - Connector Views

A/C control module -J301-

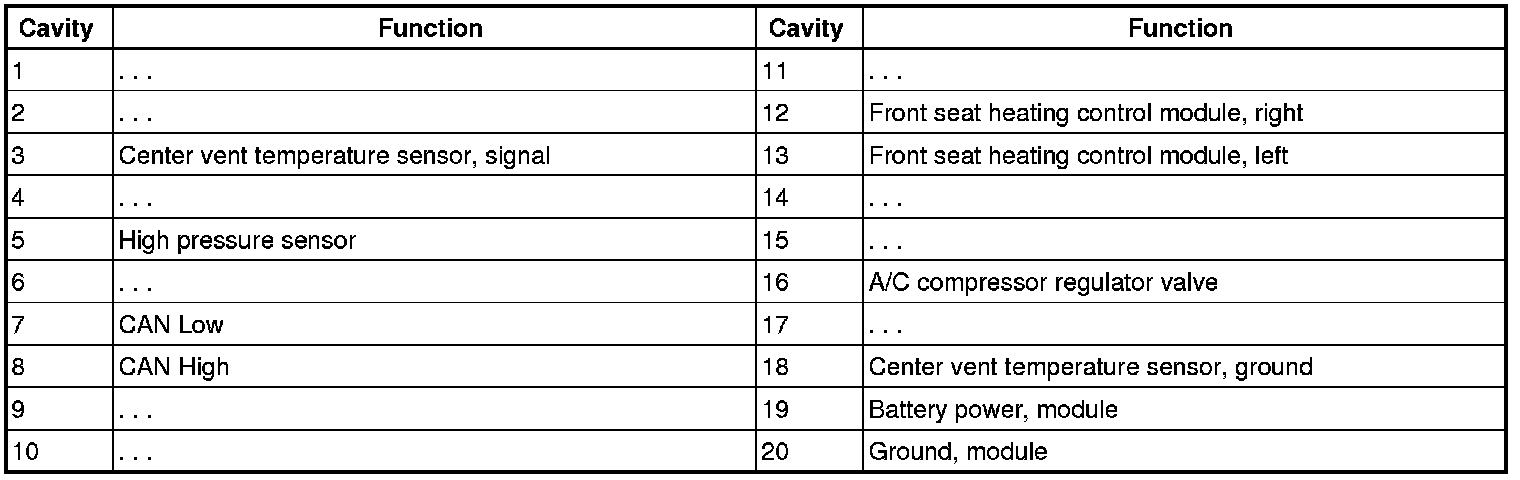

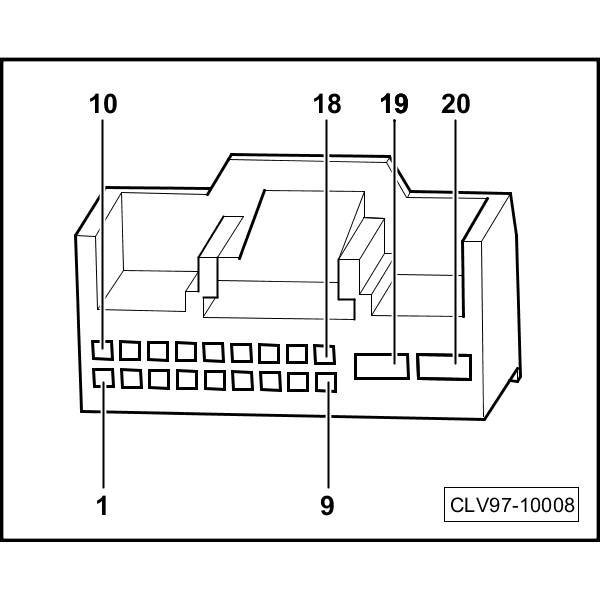

Climatic - 20 Pins

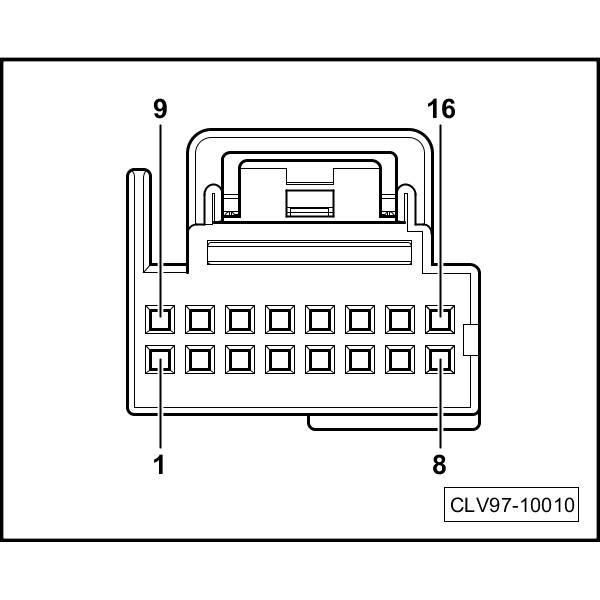

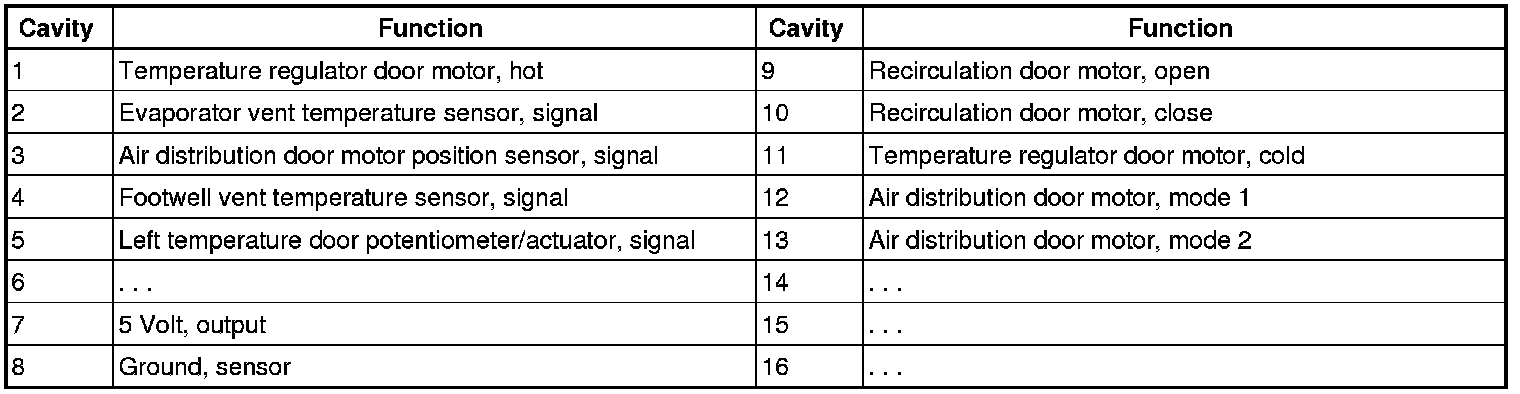

Climatic - 16 Pins

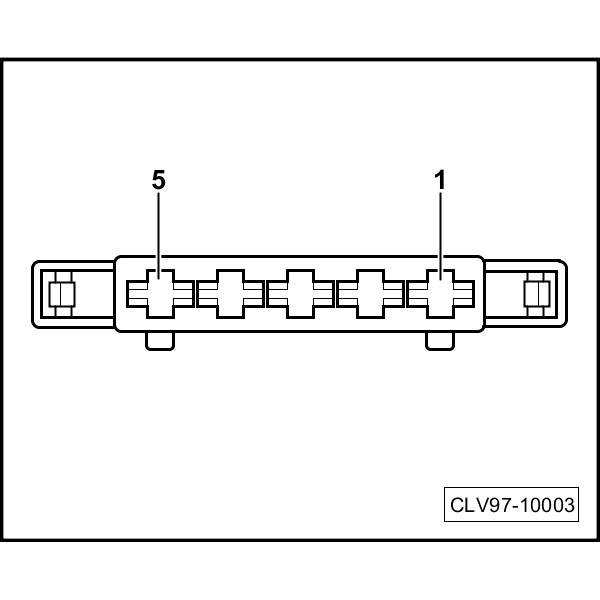

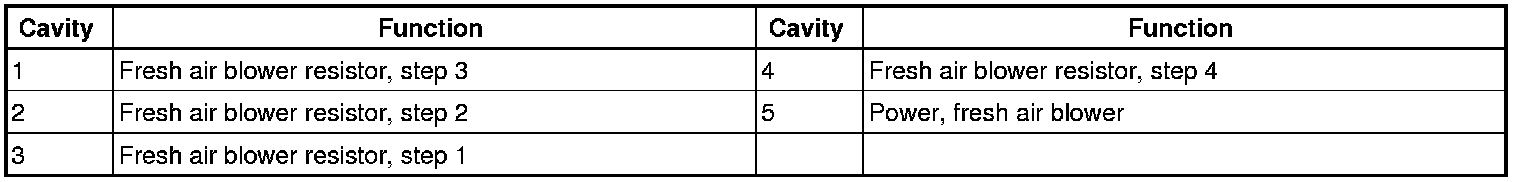

Climatic - 5 Pins
