Front Heated Seats Control Module -J774-







Control modules in rear part of vehicle

Front Heated Seats Control Module -J774-

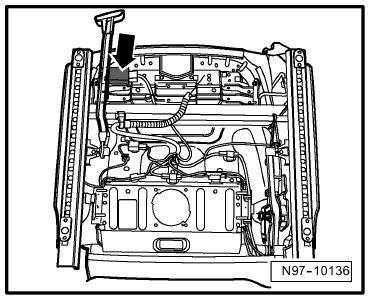

Component Location:


On left front seat frame -Arrow-
