Lock Carrier Pressure Hose and Coupling, Disconnecting and Connecting

Lock Carrier Pressure Hose and Coupling, Disconnecting and Connecting

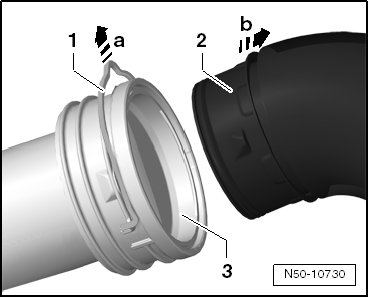

Unlocking

- Disengage the spring - 1 - in - direction of arrow A -.





- Pull the pressure hose - 2 - in - direction of arrow b - out of the coupling - 3 -.

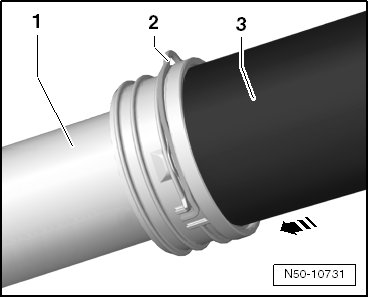

Locking

• Make sure the clip - 2 - is in the upper position.

- Attach the pressure hose - 3 - into the coupling - 1 - in - direction of arrow -.





- Push the clip - 2 - all the way through.

• If the clip cannot be pushed all the way through, this mean the pressure hose is not completely attached to the coupling.

• In this case, push the pressure hose onto the coupling one more time and then install the clip.

• Pull on the coupling to make sure it is secure.
