Access/Start Authorization Antenna 1 in Vehicle Interior (R138)

Access/Start Authorization Antenna 1 in Vehicle Interior (R138)

The access/start authorization antenna 1 in vehicle interior is installed under the front center console, in front of the selector lever.

• No coding, basic setting or adaptation is necessary if access/start authorization antenna 1 in vehicle interior is replaced. Erase the entry in the DTC memory in "Guided Fault Finding" with the Vehicle diagnostic tester.

Removing

- Turn off the ignition and all electrical consumers.

- Remove the switches in the center console. Refer to => [ Switches in Center Console Storage Compartment ] Description and Operation.

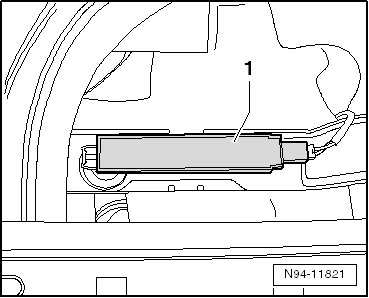

- Remove the access/start authorization antenna 1 in vehicle interior (R138) - 1 - vertically. Pay attention to the wires still connected.

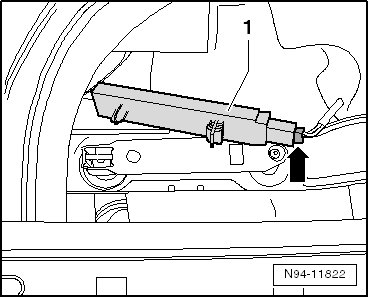

- Disconnect the connector - arrow - and remove the access/start authorization antenna 1 in vehicle interior - 1 -.






Installation

Installation is performed in the reverse order of removal.

• It is not possible to remove the bracket for the access/start authorization antenna 1 in vehicle interior in the center console without breaking it. If the antenna bracket must be removed, then install a new bracket so that there will not be any rattling noises and the KESSY system will continue to work correctly.
