Trunk / Liftgate Striker: Adjustments

Rear Lid Striker Pin, Adjusting

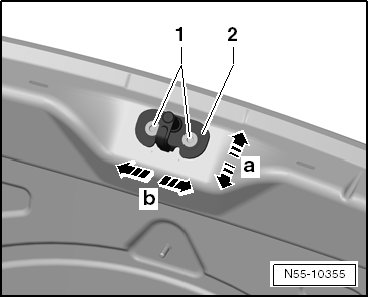

• Loosen the bolts - 1 - and slide the rear lid catch - 2 - in the oversized holes - arrows a and b -.

• Adjust the striker pin - 2 - so that the rear lid lock recess with the rotary latch engages with the center of the striker pin - 2 -.

- Remove the lock carrier cover..






- Loosen bolts - 1 -.

- Move the rear lid catch - 2 - into the upper position and lightly tighten the bolts - 1 -.

- Lock the rear lid and check the adjustment.

- Screw - 1 - tightening specification: 18 Nm.
