Window Frame Trim

Window Frame Trim

Removing

- Remove rear lid trim. Refer to=> [ Rear Lid Trim ] Rear Lid Trim

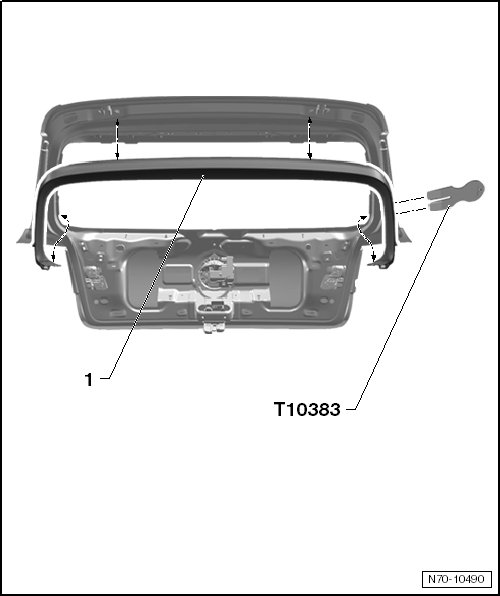

- Loosen the trim panel - 1 - on the sides from the mounts in the lid using the wedge (T10383).

- Pull trim on upper edge out of mounts.

- Remove the trim panel from the mounts in the rear lid near the aligning pins.






Installing

- Install in reverse order of removal.

• Before installation, inspect the retaining clips for damage and replace if necessary.
