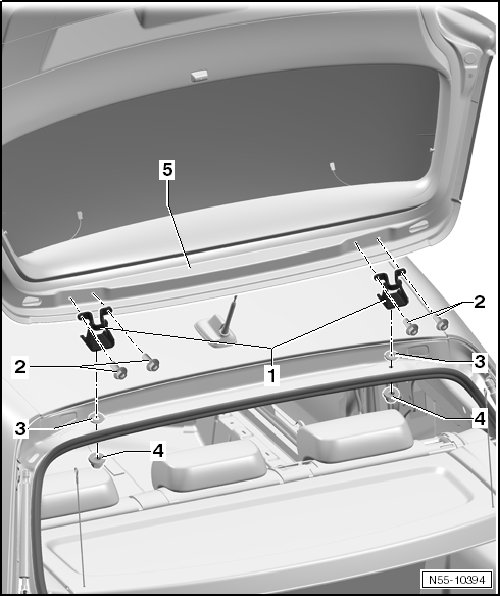

Rear Lid Hinge Overview

Rear Lid Hinge Overview






1 Hinge

• Removing, refer to => [ Rear Lid Hinge ] Rear Lid Hinge.

• Adjusting, refer to => [ Rear Lid Adjusting ] Adjustments.

2 Bolt

• Tightening specification: 10 Nm

• 2 for each hinge

3 Washer

4 Nut

• Tightening specification: 24 Nm

• Quantity: 2

5 Rear Lid
