Rear Lid Release Element

Rear Lid Release Element

Removing






- Remove the rear lid trim panel..

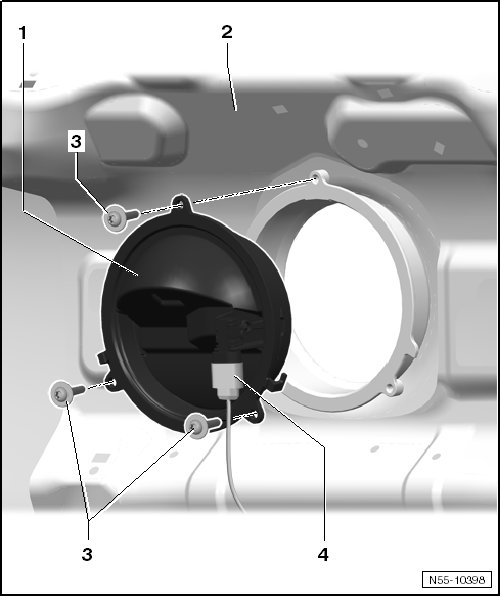

- Disconnect harness connector - 4 - from unlocking element - 1 -.

- Remove the bolts - 3 -.

- Remove the unlocking element - 1 - from the rear lid - 2 -.

Installation






Installation of unlocking element - 1 - is the same in reverse order.

Screw - 3 - tightening specification: 4 Nm.

• Perform a function test on the unlocking components before closing the rear lid.
